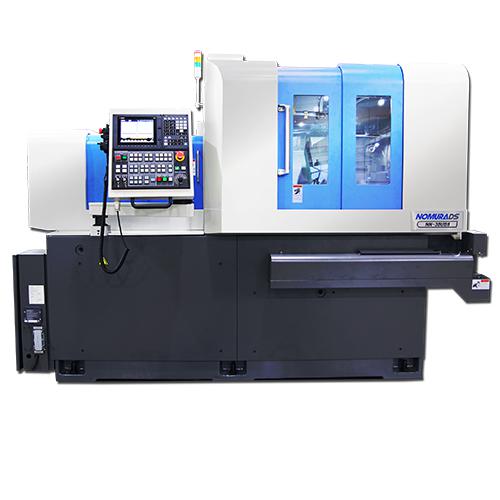

Items |
Specification |
Specification Value |
Standard Accessories |
Machining
capacity |
Max. machining diameter |
Ф38mm |
I.D. tool unit |
Max. machining length |
260mm / 1chuck |
Cross drill unit |
Max. parts unloading length |
115mm |
Manual pulse generator(MPG)37P |
Spindle |
Main spindle through-hole diameter |
Ф43mm |
Coolant unit |
Spindle rpm (Main/Sub) |
Max. 8,000rpm |
Rotary guide bush |
Sub spindle chucking diameter |
Ф38mm |
Tool holder |
Tool |
Max. number of tools |
30 |
Drill holder |
Max. machining drill |
Ф13/10mm |
Main : Chuck sleeve /Spring/Spindle cap(1set) |
Max. machining tap |
M12/M10 |
Sub : Chuck sleeve /Spring/Spindle cap(1set) |
Main |
O.D. tool |
5 (□20X150mm max) |
Automatic power turn-off device |
I.D. tool |
5 (ER16X3 + ER20X2) |
Automatic oiling device (level detector attached) |
Cross drill |
5 (ER20) |
Cuttign oil device (Main/Sub) |
Cross drill rpm |
Max. 6,000rpm |
Coolant failure detector |
Long drill |
2EA (Ф13) |
Overload detection function |
SUB |
I.D. tool |
3 (ER20X2 + ER16X1) |
Door interlock switch |
I.D. eccentric |
3 (ER20) |
Working light (LED) |
Cross drill |
- |
Parts conveyor |
I.D. drill rpm |
Max. 6,000rpm |
Parts catcher |
Feed |
Rapid feed rate |
36m/min |
Levelling pad |
Min. command unit |
0.0001mm |
Signal warning light - 3 stage |
C axis Min. command unit (Main, Sub) |
0.0001° |
Display language
(CHN/ENG/FRA/GER/ITA/JPN/KOR/POL/RUS/SPA) |
Motor |
Main spindle motor |
7.5/5.5kW |
Long drill holder |
Cross drill motor |
1.5kW |
Chip conveyor & Chip box |
Sub spindle motor |
5.5/3.7kW |
Optional Accessories |
$2 cross drill motor |
0.9kW |
E3 UNIT |
Y1,Z1,X2.Z2 axis feed motor |
0.5kW / 1.4kW |
Fixed guide bush |
X1,Y2 axis feed motor |
1.0kW / 1.4kW |
Tap breakage detector (Main, Sub) |
Coolant pump (Main, Sub) |
0.9kW + 0.25kW |
Tool presetter |
Lubricant pump |
0.003kW |
Tool air blow |
Dimensions
and etc. |
Main spindle center height |
1,160mm |
Rear ejection unit (Ф36mm or less) |
Input power capacity |
40KVA |
Spindle tube liner for small part |
Air pressure, flow rate |
0.6MPa.35L/min |
Large-sized lubricant pump 1.8ℓ |
Coolant tank |
370L(보조탱크포함) |
Medium / High pressure coolant |
WxDxH |
2,660x1,528x2,038 mm |
Oil mist collector |
Weight (Options included) |
3,600kg |
Custom colors |
NC |
NC MITSUBISHI |
M80 |
Tooling |
NC display |
10.4 Color TFT LCD |
|
Memory capacity |
500KB |
|
Number of tool offset |
256sets |
|
Background edit function |
|
|
C axis function (Main, Sub spindle) |
|
|
User macro function |
|
|
Nose R compensation |
|
|
Corner chamfering /Corner rounding |
|
|
Fixed cycle |
|
|
Complex fixed cycle |
|
|
Geometric commands |
|
|
Controller manual |
|
|
Serial in / Output interface |
|
|
CF card / USB interface |
|
