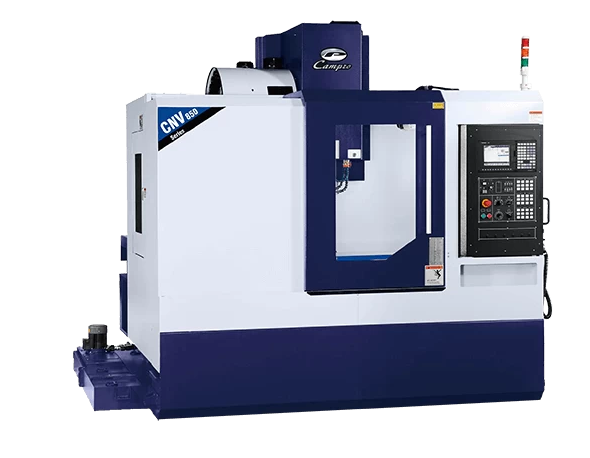

Travel |
X axis travel |
mm(in) |
1,020(40.1") |
Y axis travel |
mm(in) |
610(24") |
Z axis travel |
mm(in) |
610(24") |
Distance from spindle nose to table surface |
mm(in) |
85~695(3.3" ~ 27.3") |
Distance from spindle center to column |
mm(in) |
688(27") |
Table |
Table dimension |
mm(in) |
1,120 × 610(44" x 24") |
Max. loading weight |
kg(lb) |
800(1,763) |
T-slots (W x No. x P) |
mm(in) |
18 x 5 x 100(0.7" x 5 x 3.9") |
Spindle |
Spindle speed(OPT) |
rpm |
10,000(12,000 / 15,000) |
Spindle motor |
kW(HP) |
11 / 15(20HP) |
Spindle taper |
type |
7/24 taper No.40 |
Automatic Tool Changer |
ATC type |
type |
Arm type |
Tool shank |
type |
BT-40 |
Pull stud |
type |
P-40T (45°) |
Tool storage capacity(OPT) |
pcs. |
24(30 / 32 / 40) |
Max. tool diameter |
mm(in) |
Ø80(Ø3.1") |
Max. tool diameter (Adjacent empty) |
mm(in) |
Ø150(Ø5.9") |
Max. tool length |
mm(in) |
250(9.8") |
Max. tool weight |
kg(lb) |
7(15) |
Tool change time (Tool to Tool) |
sec. |
2.5 |
Tool change time (Chip to Chip) |
sec. |
7 |
Feedrate |
Rapid feedrate (X / Y / Z) |
m(in)/min |
48 / 48 / 32
(1,889.7 / 1,889.7 / 1,259.8) |
Cutting feedrate |
mm(in)/min |
10,000(393.7) |
Other |
Floor plan (W × D) |
mm(in) |
3,330 × 2,350(131" x 92") |
Machine weight |
kg(lb) |
7,100(15,652) |
Max. machine hight |
mm(in) |
2,770(109") |
Air source |
kg/cm2(PSI) |
6~8(85~113) |
Power capacity |
KVA |
25 |
