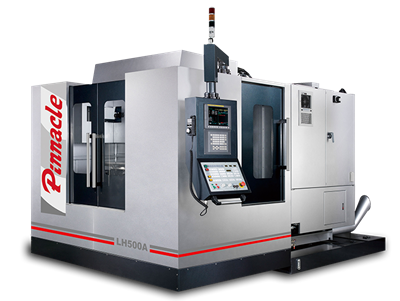

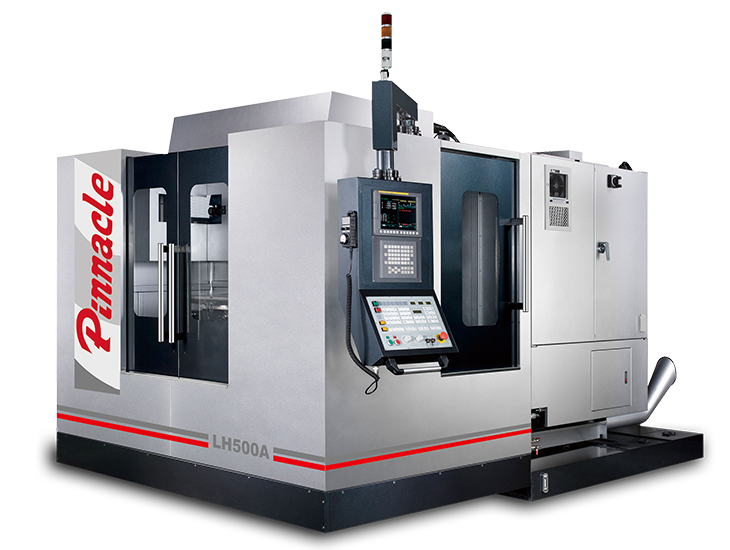

TABLE |
|
Table Size & Number (mm) |
500 x 500 |
Travel Ranges (X x Y x Z mm) |
650 x 560 x 560 |
Screw size (Size x Pitch mm) |
18 x 100 x 5 |
Max. Table Load (kg) |
400 |
Max. Workpiece Size (W x H mm) |
Ø630 x 610 |
Spindle Center to Table surface (mm) |
50 |
Spindle Nose to Table Center (mm) |
100 |
Table Index (deg) |
1° (0.001°) |
Method of Pallet Changer |
- |
SPINDLE |
|
Spindle Taper |
ISO40 |
Spindle Inner Diameter (mm) |
Ø70 |
Spindle Speed (rpm) Belt |
8000 |
Spindle Speed (rpm) Gear |
8000 |
Spindle Speed (rpm) Built-in |
15000 |
Main Motor (con/30 min Kw) |
11/15 |
AXIS SERVO MOTOR |
|
Rapid Feed Rate (X/Y/Z m/min) |
30/24/30 |
Feed Rate (X/Y/Z/ m/min) |
10 |
X Axis Rated Torque (Nm) |
10 |
Y Axis Rated Torque (Nm) |
10 |
Z Axis Rated Torque (Nm) |
10 |
B Axis Rated Torque (Nm) |
10 |
B Axis Max. Rpm |
16.6 |
AUTO TOOL CHANGER |
|
ATC Type |
CHAIN |
Cam Type |
ARM |
Tool Selection (Bi-direction) |
RANDOM |
Tool Storage Capacity (PCs) |
40 |
Max. Tool Diameter (mm) |
Ø76 |
Max. Tool Length |
300 |
Max. Tool Weight |
8 |
MISCELLANEOUS |
|
Air Requirement (Kg/cm2) |
6 |
Hydraulic Requirement (Kg/cm2, L) |
35, 60L |
Voltage |
220 |
Power Requirement (KVA) |
40 |
Coolant Tank Capacity (L) |
300 |
Machine Weight (KGs) |
6500 |
Machine Height (mm) |
2425 |
Floor Space (L x W mm) |
3055 x 4560 |
Packing Size (L x W x H mm) |
2200 x 2900 x 2500 |
