Model
|

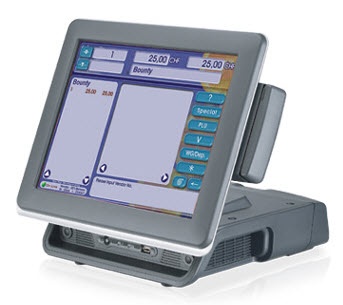

MP-3275A
|
| Processor |
Intel® Celeron® 440, 512K L2 Cache, 2.0Ghz, 800Mhz FSB (HH80557RG041512)
Intel® Pentium® E5300, 2M L2 Cache, 2.6Ghz, 800Mhz FSB (AT80571PG0642ML)
|
| System Memory |
1GB Standard, Maximum 4 GB (2 x 240-pin DDR2)
|
| Power Supply |
250W External Power Supply with 12V/24V Output
|
| Storage Device |
1 x 2.5”SATA HDD or SATA SSD
|
| Speaker |
Internal Speaker 2W x 2
|
| Construction |
ABS+SECC
|
| Housing Color |
Charcoal+Silver
|
| Touch LCD Display |
| Size / Resolution |
15” TFT LCD / 1024 x 768
|
| Brightness |
250 / 350 cd/m² (CCFL)
|
| Touch Screen |
5-Wire Resistive Touch
|
| |
| I/O Ports |
| Serial Port |
3 x Internal: COM3 (Touch), COM4 (LCM), COM6 (Reserved)
|
|
3 x External: COM1 & COM2 (DB9), COM5 (RJ45)
|
| USB Port |
2 x Internal (1 MSR, 1 Wifi), 5 x External (4 Rear, 1 Front)
|
| Printer Port |
1 x Bi-directional Parallel Port
|
| Cash Drawer Port |
1 x RJ11 (12V)
|
| Keyboard / Mouse |
1 x PS/2
|
| LAN Port |
1 x RJ45 GigaLAN
|
| PCI Slot |
1 x Mini PCI-e (Internal)
|
| Video Port |
1 x VGA
|
| DC Output |
1 x Line-out
|
| |
| OS Supported |
| Windows |
Windows XP, Windows XPE, POSReady 2009, Windows 7
|
| Linux |
Per Request
|
| |
| Physical Dimensions |
| Dimensions (WxHxD) |
382 x 356 x 285 mm (without Cable Cover),
382 x 356 x 388 mm (w/ Cable Cover)
|
| |
| Environment |
| EMI / Safety |
CE, FCC Class A
|
| Operating Temperature |
0˚C ~ 40˚C (32˚F ~ 104˚F)
|
| Storage Temperature |
-10˚C ~ 55˚C (14˚F ~ 131˚F)
|
| Relative Humidity |
10% ~ 90% (non-condensing)
|
| |
| Optional Peripherals |
| Magnetic Stripe Card Reader |
Integrated MCR Module (Single / Dual / Triple Track Selectable)
|
| 2-in-1 / 3-in-1 Module |
Integrated MCR + i-Button / MCR + RFID / MCR + Fingerprint / MCR + Smartcard + i-Button
|
| 2nd Display |
Integrated 12.1" / 15" Pole-type LCD Display (Touch Screen Optional)
|
| Customer Display |
Built in LCM or Pole-type VFD Customer Display
|
| Wireless LAN |
Integrated 802.11 b/g/n Wireless Module
|
| 2nd Storage Device |
CF II
|
