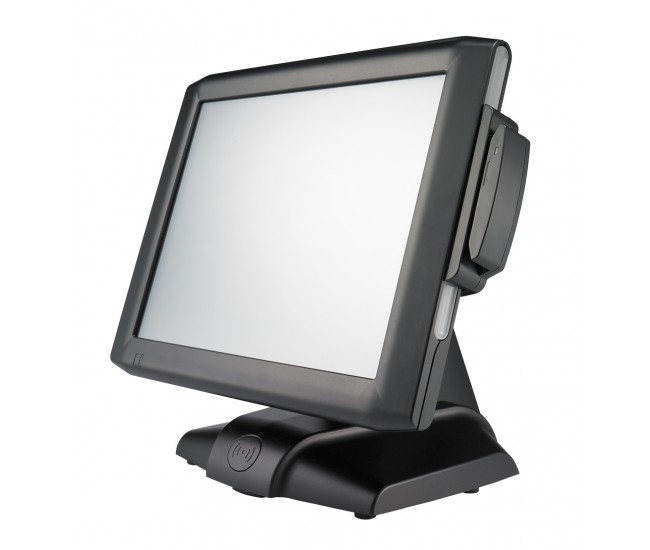

Model
|
AL-7435
|
| Processor |
Intel® Atom™ D525, 1M L2 Cache, 1.8Gh
|
| System Memory |
1GB Standard, Maximum 4GB (1x204-pin DDR3)
|
| Power Supply |
150W (12V / 12.5A) External Power Supply Integrated with Base (Optional 90W for Wall-mount)
|
| Storage Device |
1 x 2.5" SATA HDD
|
| Graphics |
Intel® GMA 3150
|
| Speaker |
Internal Speaker 2W x 2
|
| Construction |
Aluminum Die-casting + SECC
|
| Housing Color |
Black
|
| Touch LCD Display |
| Size / Resolution |
15" TFT-LCD/ 1024 X 768
|
| Brightness (Backlight Type) |
250 (CCFL) / 450 cd/m² (LED)
|
| Touch Screen |
5-Wire Resistive Touch / Capacitive Touch Optional
|
| Panel OSD Control |
Power On / Off, Brightness Up / Down
|
| I/O Ports |
| Serial Port |
3 x Internal: COM6 (LCM), COM3, COM5 (Reserved)
|
|
3 x External: COM1, COM2 (DB9), COM4 (RJ-45)
|
| USB Port |
4 x Internal (1 Touch, 1 Card Reader Module, 2 Reserved), 5 x External (4 Rear + 1 Side)
|
| Cash Drawer Port |
1 x RJ11 (12V)
|
| Printer Port |
1 x Bi-directional Parallel port
|
| Keyboard / Mouse |
1 x PS/2
|
| LAN Port |
1 x RJ45 Giga LAN
|
| PCI Slot |
1 x Mini PCI-e (Internal)
|
| Audio Port |
1 x Line Out
|
| VGA Port |
1 x VGA
|
| DC Output |
1 x 12V DC Jack 2.5 mm
|
| Second I/O Board |
|
Type A
|
Serial Port: COM5 & COM3 (RJ45) with RI / 5V / 12V Selectable; DC Output: 1 x 24V; 1 x Mic In
|
|
Type B (Special Requirements)
|
Serial Port: COM5 & COM3 (RJ45) RI / 5V / 12V Selectable; Powered USB Port: 1 x 24V; 1 x Mic In
|
|
Type C
|
Serial Port: COM5 & COM3 (RJ45) RI / 5V / 12V Selectable; Powered USB Port: 1 x 12V; 1 x Mic In
|
|
Type D (Special Requirements)
|
Powered USB Port: 1 x 12V & 1 x 24V; 1 x Mic In
|
|
Type E (Special Requirements)
|
Cash Drawer Port: 2 x 24V ; 1 x Mic In
|
| OS Supported |
| Windows |
Windows XP, Windows XPE, POSReady 2009, Windows 7
|
| Linux |
Per Request
|
| Physical Dimensions |
| Dimensions (W x H x D) |
382 x 294 x 359 mm
|
| Environment |
| EMI / Safety |
CE/FCC Class A
|
| Operating Temperature |
0°C ~ 40°C (32°F ~ 104°F)
|
| Storage Temperature |
-10°C ~ 55°C (14°F ~ 131°F)
|
| Optional Peripherals |
| MCR 3-in-1 |
Integrated MCR / Smartcard / Fingerprint or RFID 13.56 MHz
|
| 2nd Display |
Integrated 12.1" / 15" Pole-type LCD Display (Touch Screen Optional)
|
| Customer Display |
Integrated LCM Customer Display / Pole Type VFD Display
|
| Wireless LAN |
Integrated 802.11 b/g/n Wireless Module
|
| Base Integrated Devices |
RFID 13.56 MHz / Fingerprint Reader / i-Button
|
