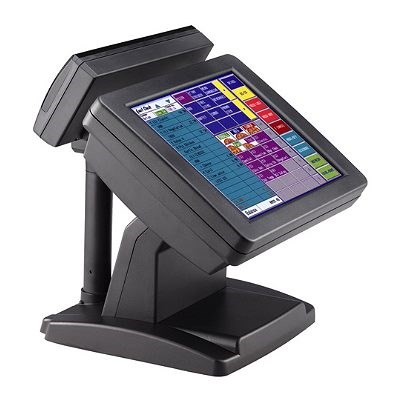

Model
|
AL-7615
|
AL-7625
|
| Processor |
Intel® Celeron® 540 or Pentium® G850 or Core i5-2400
|
Intel® Celeron® B810 or Core i5-2510E
|
| System Memory |
2GB Standard, Maximum 8GB (1x204-pin DDR3)
|
| Power Supply |
150W (12V / 12.5A) External Power Supply
|
| Storage Device |
1 x 2.5" SATA HDD
|
| Graphics |
Intel® H61
|
Intel® QM67
|
| Speaker |
Internal Speaker 2W x 2
|
| Construction |
Aluminum Die-casting + Plastic + Glass
|
| Housing Color |
Black with Silver Trim
|
| Touch LCD Display |
| Size / Resolution |
15" TFT-LCD/ 1024 X 768
|
Brightness
(Backlight Type) |
250 (CCFL) / 450 (LED) cd / m²
|
| Touch Screen |
5-Wire Resistive Touch / Capacitive Touch (Optional)
|
| Panel OSD Control Power On |
Power On / Off, Brightness Up / Down
|
| I/O Ports |
| Serial Port |
1 x Internal: COM6 (LCM)
|
|
3 x External: COM1, COM2 (DB9), COM4 (RJ-45)
|
| USB Port |
4 x Internal (1 Touch, 1 Card Reader Module, 2 Reserved), 5 x External (4 Rear + 1 Side)
|
| Cash Drawer Port |
1 x RJ11 (12V)
|
| Printer Port |
1 x Bi-directional Parallel port (Optional)
|
| Keyboard / Mouse |
1 x PS/2
|
| LAN Port |
1 x RJ45 Giga LAN
|
| PCI Slot |
1 x Mini PCI-e (Internal)
|
| Audio Port |
1 x Line Out
|
| VGA Port |
1 x VGA
|
| DC Output |
1 x 12V DC Jack 2.5 mm
|
| Second I/O Board |
| Type A |
Serial Port: COM5 & COM3 (RJ45) with RI / 5V / 12V Selectable; DC Output: 1 x 24V; 1 x Mic In
|
| Type B (Special Requirements) |
Serial Port: COM5 & COM3 (RJ45) RI / 5V / 12V Selectable; Powered USB Port: 1 x 24V; 1 x Mic In
|
| Type C |
Serial Port: COM5 & COM3 (RJ45) RI / 5V / 12V Selectable; Powered USB Port: 1 x 12V; 1 x Mic In
|
| Type D (Special Requirements) |
Powered USB Port: 1 x 12V & 1 x 24V; 1 x Mic In
|
| Type E (Special Requirements) |
Cash Drawer Port: 2 x 24V ; 1 x Mic In
|
| OS Supported |
| Windows |
Windows XP, Windows XPE, POSReady 2009, Windows 7
|
| Linux |
Per Request
|
| Physical Dimensions |
| Dimensions (WxHxD) |
382 x 294 x 359 mm
|
| Environment |
| EMI / Safety |
CE, FCC Class A
|
| Operating Temperature |
0˚C ~ 40˚C (32˚F ~ 104˚F)
|
| Storage Temperature |
-10˚C ~ 55˚C (14˚F ~ 131˚F)
|
| Relative Humidity |
10% ~ 90% (Non-condensing)
|
| Optional Peripherals |
| Magnetic Stripe Card Reader |
Integrated MCR Module (Single / Dual / Triple Track Selectable)
|
| 2nd Display |
Integrated 12.1" / 15" Pole-type LCD Display (Touch Screen Optional)
|
| Customer Display |
Integrated LCM Customer Display / Pole Type VFD Display
|
| Wireless LAN |
Integrated 802.11 b/g/n Wireless Module
|
| Identification Devices |
RFID 13.56 MHz / Fingerprint Reader / i-Button
|
