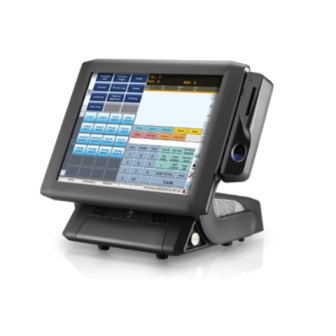

Model
|
AL-9705
|
| Processor |
AMD Athlon™ 3100+ 2.0Ghz (Single Core) / V662C 2.8GHz (Dual Core)
|
| System Memory |
1 GB Standard, Maximum 4 GB (2 x 240-pin DDR2)
|
| Power Supply |
150W (12V / 12.5A) External Power Adaptor
|
| Storage Device |
Supports 2 x 2.5" SATA HDD Bays with RAID Function (2nd Bay is Optional)
|
| Speaker |
Internal Speaker 2W x 2
|
| Construction |
Aluminum Die-casting + SECC
|
| Housing Color |
Silver+White / Black+Silver
|
| Touch LCD Display |
| Size / Resolution |
15” TFT LCD / 1024 x 768
|
| Brightness (Backlight Type) |
250 / 350 cd/m² (CCFL)
|
| Touch Screen |
5-Wire Resistive Touch / Capacitive Touch (Optional)
|
| |
| I/O Ports |
| Serial Port |
1 x Internal: COM1 (i-Button)
|
|
5 x External: COM2, COM3, COM4 (RJ45) with 5V / 12V / RI selectable, COM5, COM6 (DB9) with RI only
|
| USB Port |
2 x Internal (1 Touch, 1 3-in-1 Module), 8 x External (6 in Rear, 2 in Side),
|
| Data Port |
1 x RJ45 (10P10C for LPT-type KeyPro Application Only)
|
| Cash Drawer Port |
1 x RJ11 (12V / 24V)
|
| Keyboard / Mouse |
1 x PS/2
|
| LAN Port |
1 x RJ45 Giga LAN
|
| Video Port |
1 x VGA (DB15), 1 x Display Port (Can be Converted to VGA, DVI or HDMI)
|
| Audio Port |
1 x Line-out
|
| DC Output |
1 x 12V DC Jack 2.5 mm
|
| |
| OS Supported |
| Windows |
Windows XP, Windows XPE, POSReady 2009, Windows 7
|
| Linux |
Per Request
|
| |
| Physical Dimensions |
| Dimensions (WxHxD) |
382 x 371 x 316 mm
|
| |
| Environment |
| EMI / Safety |
CE, FCC Class A
|
| Operating Temperature |
0˚C ~ 40˚C (32˚F ~ 104˚F)
|
| Storage Temperature |
-10˚C ~ 55˚C (14˚F ~ 131˚F)
|
| Relative Humidity |
10% ~ 90% (non-condensing)
|
| |
| Optional Peripherals |
| Magnetic Stripe Card Reader |
Integrated MCR Module (Single / Dual / Triple Track Selectable)
|
| MCR 3-in-1 |
Integrated MCR / Smartcard / Fingerprint or RFID
|
| i-Button |
Integrated on the System Base (Pre-installed by Factory)
|
| 2nd Display |
12.1"/15" Pole-type LCD Display (Touch Screen Optional)
|
| Customer Display |
VFD / LCM Pole-type Customer Display
|
| Wireless LAN |
Integrated 802.11 b/g/n Wireless Module
|
| 2nd Storage Device |
CF II
|
