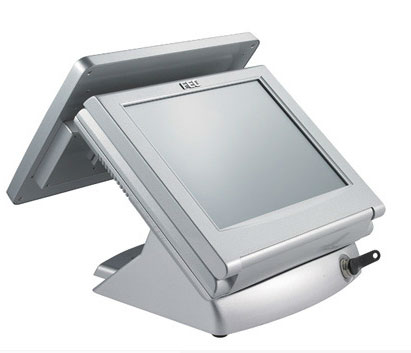

Model
|
H820B
|
| Processor |
Intel® Pentium® E5300, 2M L2 Cache, 2.6Ghz, 800Mhz FSB (AT80571PG0642ML)
|
| System Memory |
1 GB Standard, Maximum 2 GB (1 x 240-pin DDR2)
|
| Power Supply |
250W External Power Supply
|
| Storage Device |
1 x 2.5" SATA HDD
|
| Speaker |
Internal Speaker 2W x 2
|
| Construction |
Aluminum Die-casting
|
| Housing Color |
Black / Silver
|
| Touch LCD Display |
| Size / Resolution |
12" TFT LCD / 800 x 600
|
| Brightness (Backlight Type) |
330 cd/m² (LED)
|
| Touch Screen |
5-Wire Resistive Touch
|
| I/O Ports |
| Serial Port |
3 x Internal: COM5 (Touch), COM4, COM6 (Reserved)
|
|
3 x External: COM1, COM2 (DB9), COM3 (RJ45)
|
| USB Port |
4 x Internal, 4 x External
|
| Printer Port |
1 x Bi-directional Parallel Port
|
| Cash Drawer Port |
1 x RJ11 (12V)
|
| Keyboard |
1 x PS/2
|
| LAN Port |
1 x RJ45 10/100
|
| Video Port |
1 x VGA
|
| Audio Port |
1 x Line-out
|
| DC Output |
1 x 12V DC Jack 2.5 mm
|
| OS Supported |
| Windows |
Windows XP, Windows XPE, POSReady 2009, Windows 7
|
| Linux |
Per Request
|
| Physical Dimensions |
| Dimensions (WxHxD) |
310 x 251 x 275 mm
|
| Environment |
| EMI / Safety |
CE, FCC Class A
|
| Operating Temperature |
0°C ~ 40°C (32°F ~ 104°F)
|
| Storage Temperature |
-10°C ~ 55°C (14°F ~ 131°F)
|
| Relative Humidity |
10% ~ 90% (Non-condensing)
|
| Optional Peripherals |
| Magnetic Stripe Card Reader |
Integrated MCR Module (Single / Dual / Triple Track Selectable)
|
| 2-in-1 / 3-in-1 Module |
Integrated MCR + i-Button / MCR + RFID / MCR + Fingerprint / MCR + Smartcard + i-Button
|
| 2nd Display |
Integrated 12.1" TFT LCD (Touch Screen Optional)
|
| Customer Display |
Integrated VFD or LCM Customer Pole Display
|
| 2nd Storage Device |
CF II or IDE DOM
|
