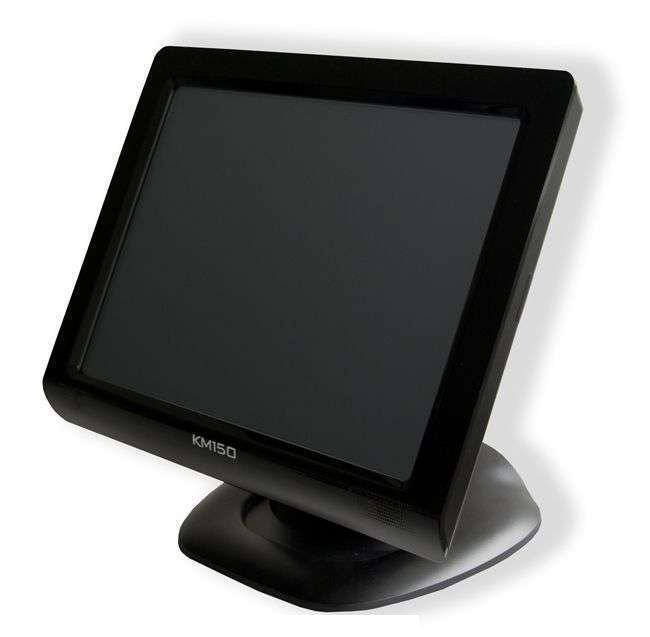

Model
|
KM-150B
|
Processor
|
VIA Eden™ (ULV) Processor 1.0Ghz
|
System Memory
|
1 GB Standard, Maximum 1 GB (1 x 200-pin DDR2)
|
Power Supply
|
150W (12V/12.5A) External Power Adaptor
|
Storage Device
|
1 x 2.5" SATA HDD
|
1 x CF Card (Optional)
|
Construction
|
Aluminum Die-casting, Housing
|
Housing Color
|
Black
|
Touch LCD Display
|
Size / Resolution
|
15" TFT LCD / 1280 x 1024
|
Brightness
|
250 / 350 cd/m²
|
Touch Screen
|
5-Wire Resistive Touch
|
I/O Ports
|
Serial
Port
|
3 x External : COM1, COM2, COM4 (RJ45)
|
USB
Port
|
4 x External (2 in Front, 2 in Rear)
|
Cash
Drawer Port
|
1 x 12V RJ11 (Single / Dual)
|
Keyboard
|
1 x PS/2
|
LAN
Port
|
1 x RJ45 Giga LAN
|
Video
Port
|
1 x RJ45 Giga LAN
|
Audio
Port
|
1 x Line-out
|
DC Output
|
1 x 12V for 2nd Display
|
OS Supported
|
Windows
|
Windows XP, Windows XPE, POSReady 2009, Windows 7
|
Linux
|
Per Request
|
Physical Dimensions
|
Dimensions (WxHxD)
|
375 x 285 x 105 mm
|
Weight
|
Weight of Terminal
|
Net 9 kg, Gross 10kg
|
Environment
|
EMI / Safety
|
CE, FCC Class A
|
Operating Temperature
|
0˚C ~ 45˚C (32˚F ~ 104˚F)
|
Storage Temperature
|
-10˚C ~ 50˚C (14˚F ~ 122˚F)
|
Relative Humidity
|
10% ~ 90% (Non-condensing)
|
Optional
Peripherals
|
Magnetic Stripe Card Reader
|
MCR Single/Dual/Triple Track
|
Wireless LAN
|
802.11 b/g/n Wireless LAN Module
|
