Series
|

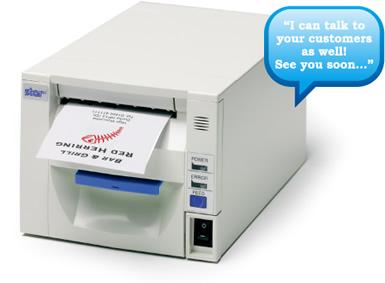

FVP10 series
|
Model Name
|
FVP10U-24
|
Printer Case Colour
|
Star White / Charcoal Grey (*1)
|
Installation
|
Horizontal use
|
Printer Method
|
Direct Thermal Line Printing
|
Character Specifications
|
Print Configuration
|
Alphanumeric Characters: 12 x 24 dots, IBM Block: 12 x 32 dots,
Chinese Characters 12 x 24 dots, 24 x 24 dots
|
No. of Columns
|
Maximum 48 columns (12 x 24 fonts) / 24 column (24 x 24 fonts)
|
Character Size
|
12 x 24 fonts 1.5 x 3.0 mm (W x H), 12 x 32 fonts 1.5 x 4.0 mm (W x H),
Chinese Characters: 1.5 x 3.0 mm (W x H), 3.0 x 3.0 mm (W x H)
|
Character Type
|
Alphanumeric Characters, Extended Graphics, International Characters,
JIS First Standard Chinese Characters, JIS Second Standard Chinese Characters
|
Barcodes
|
UPC-A/E, JAN/EAN8, JAN/EAN13, ITF, CODE39, CODE93,
CODE128, CODABAR(NW-7), PDF417 and QR
|
Print Resolution
|
8 dots per mm (203dpi)
|
Emulation
|
Star Mode, ESC/POS
|
Interfaces
|
Standard: USB(2.0), Option: Serial (RS-232C),
Parallel (IEEE1284), Ethernet (100BASE-TX/10BASE-T) & Powered USB
|
Print Speed
|
up to 250 mm/second
|
Paper Specifications
|
Media Types
|
Thermal Paper Roll, Thermal Label Roll (Black Mark)
|
Paper Width
|
58 - 80 mm (variable with 80 mm default)
|
Roll Diameter
|
Max. 83 mm
|
Thickness
|
0.065 - 0.15 mm
|
Auto-Cutter
|
Cutting Method
|
Guillotine
|
Cutting Modes
|
Full cut / Partial cut
|
Life
|
up to 2 million cuts (with recommended paper)
|
Power Supply Voltage
|
DC24V±10%
|
Current Consumption
(During ASCII Continuous Printing)
|
Approx. 1.6A (DC24V)
|
Peripheral Drive Circuit
|
2 circuits (24V max. 1A), 1 compulsion input
|
Reliability (MCBF)
|
60 million lines
|
Speaker
|
Internal Speaker
|
Diameter: ø16-h3
|
Audio Jack Connector
|
ø3.5 mm, Monaural Miniature Jack
|
Dimensions
|
144×228×114 mm (WxDxH)
|
Weight
|
2.8kg (without paper roll, options and attachments)
|
Safety Standards
|
VCCI: Class A, FCC: Class A, EN55022: Class B, UL, C-UL, TUV(EN60950)
|
AC adapter (Option)
|
PS60A-24B (option)
|
Options
|
Interface Cable Cover CC-F10, Shelf Mount Frame MK-F10,
Interface Boards (Seeoptionfor details.)
|
