Model |

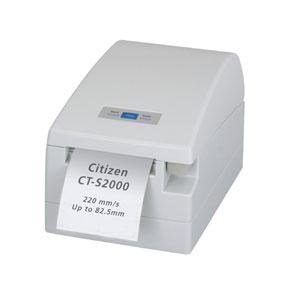

CT-S2000 |
Printing method |
Line thermal dot printing |
Print width |
82.5mm paper: 80mm / 640 dots
80mm paper: 72mm / 576 dots
60mm paper: 54.5mm / 436 dots
58mm paper: 54mm / 432 dots |
Resolution |
8 x 8 dots/mm (203 dpi x 203 dpi) |
Printing speed |
Max. 220 mm/sec (52 lines/sec) |
Number of print columns |
Font |
Maximum number of characters
(columns) |
Dot configuration
(dots) |
82.5mm |
80mm |
60mm |
58mm |
Font A |
53 |
48 |
36 |
35 |
12 × 24 |
Font B |
71 |
64 |
48 |
46 |
9 × 24 |
Font C |
80 |
72 |
54 |
52 |
8 × 16 |
|
Character size
(W × H) |
Font A: 1.50 × 3.00 mm
Font B: 1.13 × 3.00 mm
Font C: 1.00 × 2.00 mm |
Character type |
Alphanumeric, International, PC437/850/852/857/858/860/863/864/865/866/WPC1252/Katakana/Thai code 18 |
User memory |
384K bytes |
Barcode type |
UPC-A/E, JAN(EAN) 13/8 columns, ITF, CODE 39, CODE 128, CODABAR, CODE 93 |
Line spacing |
4.23mm (1/6 inch), selectable with a command (min 1/203 inch) |
Paper roll |
82.5/80/60/58 mm × F102 mm (Max.) |
Interface |
Parallel (IEEE1284 compliant) + USB
Serial (RS-232C) + USB |
External device port |
2 cash drawers are supported |
Buffer size |
4K bytes/45 bytes |
Power source |
Input: AC100-240V, 50/60Hz, 150VA
Output: DC24V, 2A |
Weight (approx.) |
1.8 kg |
Outer dimensions
(W × D × H) |
147 × 207 × 147 mm |
Operating temperature and humidity |
5 to 40 °C, 10 to 90 % RH (no condensation) |
Storage temperature and humidity |
-20 to 60 °C, 10 to 90 % RH (no condensation) |
Reliability |
Thermal head: 200,000,000 pulses or 150 km
Auto cutter life: 2 million cuts |
Safety standards |
UL, C-UL, FCC class A, TUV-GS, CE marking |
