| SCP700 |

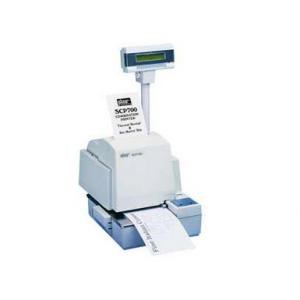

| SCP700 Printer |
| Standard Interface |
 RS232C (D-sub 9 pin) |
| Support Interfaces |
Customer Display Dual Cash Drawer Driver |
| Optional Additional Interface |
RS232C (D-Sub 25 pin) or Centronics Parallel input. |
| Power Requirement |
24V DC / 2A, Connector Type TCS7960 53-2010 (HOSIDEN) |
| Agency Approval |
UL C-UL FCC Class A TÜV CE |
| Dimensions and weight |
180mm (W) x 270mm (D) x 200mm (H), 3.5Kg |
| Operating environment |
5°C to 35°C 25% to 85% RH (w/o) condensation |
| Slip Printer |
| Printer Method |
9-pin serial impact dot matrix with true descenders |
| Print Speed |
Up to 3.1 lines per second with bi-directional cheque mode |
| Emulation |
Star Mode
ESC/POS™ (EPSON TM-U295) |
| Interface |
Parallel Serial RS232C |
Paper
Copy Capability
Paper Width / Length
Margin Top / Bottom
Paper Feed Speed
Forward / Reverse |
Orignal + two copies
80 / 80mm (minimum)
5 / 14mm
3.5 / 4.5 inches per second or 21 / 27 lines per second |
| Number of Columns |
42 (7 x 9 font) |
| Print Width |
63mm |
| Peripheral Driver |
Two drivers with compulsion switch input |
Buffer
Star Mode
ESC/POS™ Mode |
2048 Byte
512 Byte or 35 Byte |
| Reliability |
9 million lines Calculated Real Time MCBF / 2.5 million lines (Triditional) |
| Head Life |
70 million characters |
| Power Supply |
Option 100 ~ 240V AC / 24V DC |
| Dimensions |
180 (W) x 190 (D) x 138 (H) mm |
| Weight |
2.1Kg (approx.) |
| Ribbons |
Black RC200B, 1.2 million characters |
| Drivers Available |
OPOS™ , Winodws™ Line mode with control font support |
| Thermal Receipt Printer |
| Print method |
Direct line thermal |
| Print Head |
Linear Thermal head |
| Print Resolution |
8 (H) x 8 (V) dots/mm (203dpi) |
| Print Speed |
16.7 lines per sec (50mm/sec) |
| Number of columns |
48 (12 x 12 Font), Font A 64 (9 x 24 font) (EPSON TM-T85 mode only), Font B |
| Printable Width |
72mm |
| Number of Dots / Line |
576 dots |
| Font, Character Size |
12 X 24 / 8 X 24 |
| Paper width |
80mm |
| Paper Diameter |
85mm |
| Paper Thickness |
0.06 to 0.85 mm |
| Core Diameter |
Inner 12mm ± 1mm
Outer 17mm ± 1mm |
| Paper Feed Method |
Stepping Motor |
| Paper Feed Speed |
50mm/sec |
| Sensor |
Paper out, Near END (3 Adjustable positions) |
| Autocutter type |
Full or partial cut |
| Reliability |
10 Million Lines
38 Million Lines Calculated teal time MCBF |
| Print head life |
50KM |
| Autocutter MCBF |
300,000 cuts |
| Customer Display SCD-202 (optional) |
| Type |
Back lit LCD |
| Number of columns |
20 Coutmns x 2 lines |
| Interface Card (optional) |
IFBD-D
IFBD-C |
RS232C (D-sub 25 pin)
Bi-directional IEEE1284 compatible (ampenol type 36 pin connector) |
