Model |

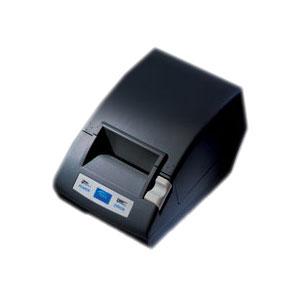

CT-S280 |
Printing method |
Line thermal dot printing |
Print width |
48mm (384 dots/line) |
Resolution |
8 x 8 dots/mm (203 dpi x 203 dpi) |
Printing speed |
Max. 80mm/sec |
Number of print columns |
Font A: 32 columns (12 x 24 dots)
Font B: 42 columns (9 x 24 dots)
Font C: 48 columns (8 x 16 dots) |
Character size
(W × H) |
Font A: 1.50 × 3.00 mm
Font B: 1.13 × 3.00 mm
Font C: 1.00 × 2.00 mm |
Character type |
Alphanumeric, International, PC437/850/852/857/858/860/863/864/865/866, WPC1252, Katakana, Thai Code 18 |
User memory |
256 K bytes |
Barcode type |
UPC-A/E, JAN-13/8 columns, ITF, CODE39, CODE128, CODEBAR, CODE93 |
Line spacing |
4.23mm (1/6 inch), selectable with a command (min 1/203 inch) |
Paper roll |
Thermal label paper, 58 xF83mm (max.), 0.150mm thickness (max.) |
Interface |
Serial (RS-232C), Parallel (IEEE 1284) or USB |
Buffer size |
4K bytes/45 bytes |
Power consumption |
DC8.5V |
Power source |
AC adapter (28AD), Input: AC100-240V, output: DC8.5V |
Weight (approx.) |
430 g |
Outer dimensions
(W × D × H) |
106 × 170 × 116.5 mm |
Operating temperature and humidity |
5 to 40 °C, 10 to 85 % RH (no condensation) |
Storage temperature and humidity |
-20 to 60 °C, 10 to 90 % RH (no condensation) |
Reliability |
Thermal head: 100,000,000 pulses or 50 km |
Safety standards |
UL, C-UL, FCC class A, TUV-GS, CE marking |
