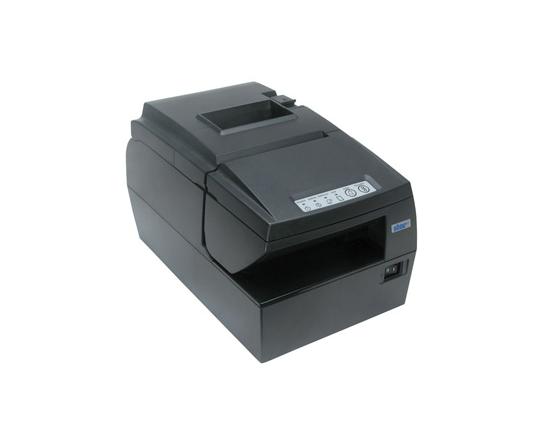

| Models |
|
 HSP7743
HSP7643
HSP7543 |
| Printer Method |
|
Direct Linear Thermal |
| Print Speed |
|
250 mm per sec. |
| Model Available |
|
Auto Cutter Only |
| Print Resolution |
|
203 x 203 dpi / 203 x 406 dpi Selectable |
| 2 Colour Print Capability |
|
Red/Black Blue/Black
(Special paper required) |
| Bar Codes |
|
Supported |
Paper
Specifications:
Width
Thickness/Weight
Roll Diameter
Easy-Loaded
Paper Out Sensor
Paper Low Sensor
Print Width |
|
80mm standard 76 mm 58mm adjustable
0.065 ~ 0.085mm
Up to 83mm
"Drop-In & Print"
Standard
Standard
80 mm paper = 72 mm; 76 mm paper = 68 mm; 58 mm paper = 50.8 mm |
| Auto Cutter |
|
Guillotine (Partial Cut Only) |
| Cover Open Sensor |
|
Yes |
| Reliability MCBF |
|
60 Million Lines |
| Auto Cutter |
|
1.5 Million Cuts |
| Impact Slip/Validation Station |
| Print Method |
|
9-Pin Bi-Directional Logic Seeking |
| Reliability |
|
37 Million Lines |
| Number of Columns |
|
60 / 45 |
| Print Area |
|
85.4 mm maximum |
| Paper Loading |
|
Original + 3 (Up to 4-Ply Paper Supported) |
Paper Size
Width
Length |
|
Up to 230 mm
75 – 297 mm |
Paper Thickness
1 Ply
4 Ply |
|
0.09 - 0.20 mm
0.09 - 0.31 mm |
| Ribbon |
|
RC7000B |
| Check Printing |
|
Yes |
| Validation |
|
Yes |
| MICR |
|
Yes (HSP7743/HSP7643 only) |
| MICR Character Sets |
|
E13B / CMC-7 (HSP7743/HSP7643 only) |
| General Specifications |
| Printer Case Color |
|
Putty or Gray |
| Dimensions/Weight |
|
186(W) x 296(D) x 177(H) mm/4.6 kg |
| Emulation |
|
Star Mode, ESC/POS™ |
| Drivers Available |
|
OPOS™ , JAVA POS™ , Windows™ 2000/XP/Vista™ , WinCE, WEPOS, Windows 2003 Server, Linux CUPS Support™ , MAC OSX™ |
| WHQL |
|
Certified |
| Swappable Interfaces |
|
Yes |
| Connectivity |
|
Serial, Parallel, USB, Powered USB, or Ethernet |
| Power Supply |
|
External; Requires PS60A External Power Supply |
| Peripheral Drive Circuit |
|
2 circuits |
| Power |
|
24V DC |
| Safety Standards |
|
UL, C-UL, TÜV, FCC Class A, CE, CB GOST, C-tick, AS Standard, VCCI Class A, EN55022 |
| Included with Printer |
|
Installation CD with Drivers and Manuals, Set Up Sheets, Start Up Thermal Paper Roll, Ribbon Cartridge, Paper Guide, Power Switch Cover, Ferrite Core |
| Options |
|
External Power Supply (PS60A) Swappable Interfaces No MICR Version
MICR Top Position |
