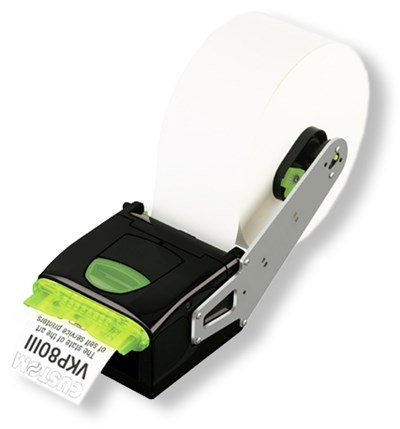

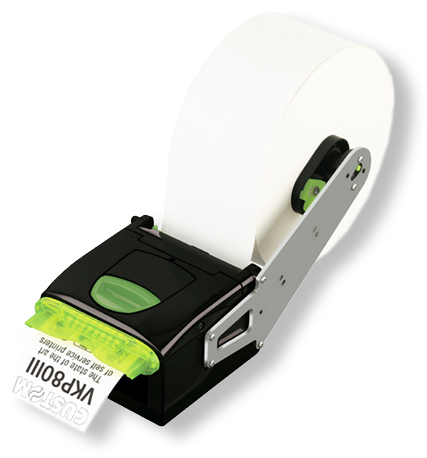

VKP80III |
Printing method |
Thermal fixed head |
Resolution |
203 dpi (8 dots/mm) / enhanced quality head |
Printing speed |
High Speed >250 mm/sec |
Paper width |
from 50 to 82.5 mm |
Paper weight |
from 60 to 110 g/m² |
Roll dimension |
max 250mm |
Print direction |
Straight, 90°, 180°, 270° |
Type styles |
Normal, 1x to 8x height and width, reverse, underscored, italic, bold |
Characters set |
PC437, PC850, PC860, PC863, PC865, PC858 |
Emulation |
CUSTOM/POS |
Interfaces |
RS232 / USB |
Data buffer |
16 KB text / 1 MB graphic |
Flash memory |
3 MB |
Graphics memory |
logos dynamic management (max 2MB) |
Drivers |
Self-installing driver for Win 2K, XP, Vista, 7; Linux |
Software tools |
Full Status Monitor; TrueType supported; Dynamic logos, UpgCePrn |
Power supply |
24 Vdc±10% |
Power consumption* |
1 A |
MTBF** |
150.000 hours |
Head life |
100Km / 100M pulses |
MCBF |
1.000.000 cutter life |
Operation temperature |
0°C + 50°C |
Dimensions (mm) |
116x143,5x76,4 |
Weight |
0.8 Kg |
|
