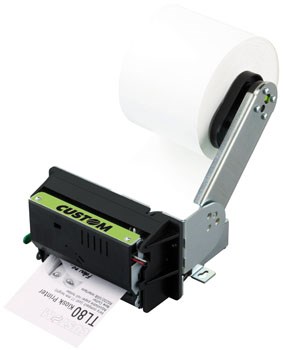

TL80 |
| Printing method |
Thermal fixed head |
| Risolution |
203 dpi (8 dots/mm) |
| Printing speed |
130mm/sec |
| Columns |
33 – 43 – 60 |
| Paper width |
80mm |
| Roll dimension |
max 90 mm |
| Printing direction |
Straight, 180° |
| Type Style |
Normal, 1x to 4x height and width, reverse, underlined, italic, bold |
| Character Set |
PC437, PC850, PC860, PC863, PC865, PC858, PC866, VISCII
(Option 0104: PC437, PC850, PC860, PC863, PC865, PC858, GB2312)
|
| Emulation |
ESC/POS |
| Interfaces |
RS232 + USB |
| Data Buffer |
2 kB |
| Flash memory |
1 MB |
| Graphic memory |
2 logos of 608x430 dot |
| Drivers |
Win XP, Vista, 7 |
| Sensors |
Heat temperature, paper presence |
| Software Tools |
LogoEditor, FontEditor |
| Hardware options |
Paper holder support |
| Power supply |
24V +/- 10% |
| Power consumption* |
0.9A |
| Head life |
50Km/100M pulses |
| MTBF** |
420.000 hours |
| Dimensions (mm) |
128,7(L)x130,2(W)x77(H) |
| Weight |
0,900 Kg |
|
