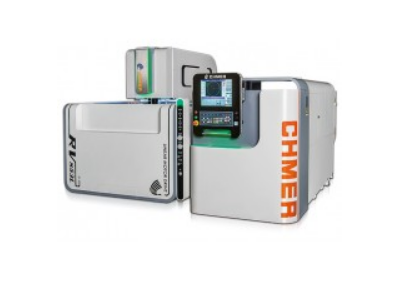

MACHINE SEPCIFICATION |
Model |
RV743L |
RV853(5)L |
RV1063(5)L |
RV1283(5)L |
Axis Travel (X Y) (mm) |
700x450 |
800x500 |
1000x600 |
1200x800 |
Axis Travel (U, Y, Z) (mm) |
150x150x300 |
150x150x300
(150x150x500) |
150x150x300
(160x160x500) |
150x150x300
(160x160x500) |
Max size of workpiece (mm) |
1100x750x295 |
1200x800x295
(1200x800x495) |
1240x900x295
(1240x900x495) |
1440x1100x295
(1440x1100x495) |
Max weight of workpiece (kg) |
3000 |
3000 |
3000/5000 |
5000 |
XY Feed Rate (mm/min) |
Max 1500 |
Max 1500 |
Max 1500 |
Max 1500 |
Axis Drive System |
X, Y axis by Linear Motor; U, V, Z axis by AC Servo Motor |
Wire Diameter Range (mm) |
Ø 0.15~0.3 (Ø 0.25) |
Ø 0.15~0.3 (Ø 0.25) |
Ø 0.15~0.3 (Ø 0.25) |
Ø 0.15~0.3 (Ø 0.25) |
Max wire Feed Ratem (kg) |
≤ 8kg |
≤ 8kg |
≤ 8kg |
≤ 8kg |
Wire Tension (gf) |
300~2500 |
300~2500 |
300~2500 |
300~2500 |
Taper Angle (mm) |
±14.5°/80(wide angle
nozzle DA + DB= 15 mm) |
Appearance Configuration (WxDxH) |
3730x3000x2200 |
3840x3000x2200
(3865x3000x2750) |
4300x3300x2250
(4300x3300x2780) |
4650x4000x2250
(5050x4000x2780) |
Machine Weight (kg) |
7600 |
7800/8000 |
8000/8200 |
8800/9000 |
Working Fluid Supply Unit |
Water tank capacity |
1400L |
1400L |
2250L |
2250L |
2600L |
2600L |
3400L |
Fiter Element |
Paper |
Paper |
Paper |
Paper |
Paper |
Paper |
Paper |
Ion Exchange resins |
30L*2 |
30L*2 |
30L*2 |
30L*2 |
30L*2 |
30L*2 |
30L*2 |
Conductivity Control |
Auto |
Auto |
Auto |
Auto |
Auto |
Auto |
Auto |
Fluid temperature Control |
Auto |
Auto |
Auto |
Auto |
Auto |
Auto |
Auto |
Power Supply unit |
Circuit System |
Power Mos FET Transistor |
Max output current |
25A |
Current Selection |
15 |
Rest time |
60 |
CNC Unit |
Date input |
Keyboard, RS-232, USB, LAN |
Display |
19-Inch Color |
Control system |
32bit, 1 CPU, X&Y Closed Loop |
Control axis |
X, Y, U, V, Z (5 axis), 6th axis optional |
Setting Unit |
0.001mm |
Max command value |
9999.999mm |
Interpolation |
Linear/Circular |
Command System |
ABX/INC |
Machining Feed Control |
Servo/Const Feed |
Scaling |
0.001-9999.999 |
Machining EDM Condition memory |
1000-9999 |
Total AC power input |
3 Phase 2205%/20KVA |
