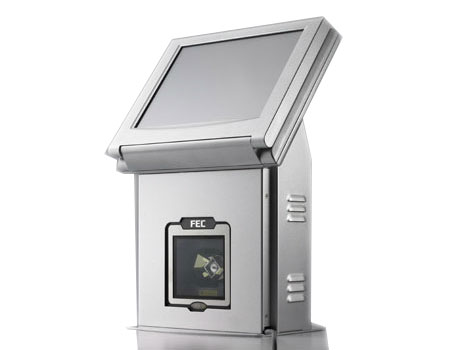

Model
|
RT-850B
|
RT-860B
|
Processor
|
Intel® Pentium® E5300, 2M L2 Cache, 2.6Ghz, 800Mhz FSB
(AT80571PG0642ML)
|
System Memory
|
1 GB Standard, Maximum 2 GB (1 x 240-pin DDR2)
|
Power Supply
|
250W External Power Supply
|
Storage Device
|
1 x 2.5” SATA HDD
|
Speaker
|
Built-in 2W x 2
|
Construction
|
Aluminum Die-casting + Metal Stand
|
Housing Color
|
Black+Silver
|
Touch LCD Display
|
Size / Resolution
|
12" TFT LCD / 800 x 600
|
Brightness
(Backlight Type)
|
400 cd/m²
|
Touch Screen
|
5-Wire Resistive Touch
|
I/O Ports
|
Serial
Port
|
2 x Internal COM3 (touch) , COM5 (Reserved)
|
3 x External: COM1& COM2 (DB9) COM4 (RJ45)
|
USB
Port
|
4 x Internal, 2 x External
|
Printer
Port
|
1 x Bi-directional Parallel port
|
Cash
Drawer Port
|
1 x RJ11 (12V)
|
Keyboard
|
1 x PS/2
|
LAN
Port
|
1 x RJ45 10/100
|
Video
Port
|
1 x VGA
|
Audio
Port
|
1 x Line-out
|
DC Output
|
1 x Line-out1 x 12V DC Jack 2.5mm
|
OS Supported
|
Windows
|
Windows XP, Windows XPE, POSReady 2009
|
Linux
|
Per Request
|
Environment
|
EMI / Safety
|
CE, FCC Class A
|
Operating Temperature
|
0°C ~ 40°C (32°F ~ 104°F)
|
Storage Temperature
|
-10°C ~ 55°C (14°F ~ 131°F)
|
Relative Humidity
|
10% ~ 90% (Non-condensing)
|
Optional
Peripherals
|
Magnetic Stripe Card Reader
|
Integrated MCR Module (Single / Dual / Triple Track
Selectable)
|
2-in1 / 3-in1 Module
|
Integrated MCR + i-Button / MCR + RFID / MCR + Fingerprint
/ MCR + Smartcard + i-Button
|
2nd Display
|
Integrated 12.1" TFT LCD (Touch Screen Optional)
|
Programmable Keyboard
|
35-Keys with MCR
|
Customer Display
|
Integrated VFD/LCM Customer Pole Display
|
2nd Storage Device
|
CF II or IDE DOM
|
