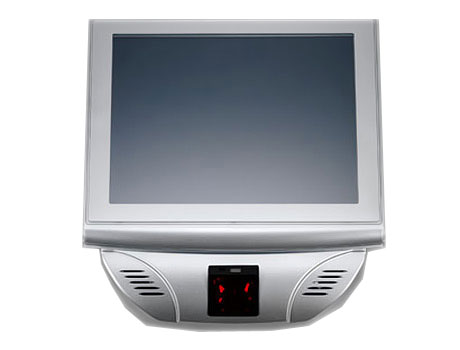

Model
|
RP-7515C/RP-7515PC
|
RP-7517C/RP-7517PC
|
Processor
|
Intel® Atom ™ N270 1.6 GHz
|
System Memory
|
1 GB Standard, Maximum 4 GB (2 x 200-pin DDR2)
|
Speaker
|
Built-in Speaker 2W x 2 (Must Come with Scanner Module)
|
Power Supply
|
150W (12V / 12.5A) External Power Adaptor
|
Storage Device
|
1 x 2.5” SATA HDD
|
Construction
|
Aluminum Die-casting, Plexi-Glass Acrylic (Front Bezel)
|
Compliance
|
IP54 for Front Bezel
|
Housing Color
|
Black / Silver
|
Touch LCD Display
|
Size / Resolution
|
15” TFT LCD / 1024 x 768
|
17” TFT LCD / 1280 x 1024
|
Brightness
|
250 / 350 cd/m²
|
380 cd/m²
|
Touch Screen
|
5-Wire Resistive Touch / IR Touch
|
5-Wire Resistive Touch
|
I/O Ports
|
Serial
Port
|
3 x External : COM1 & COM2 (DB9); COM4 (RJ45 with LED)
|
USB
Port
|
4 x External
|
Cash
Drawer Port
|
1 x 12V RJ11
|
LAN
Port
|
1 x RJ45 Giga LAN
|
Audio
Port
|
1 x Line-out
|
OS Supported
|
Windows
|
Windows XP, Windows XPE, POSReady 2009, Windows 7
|
Linux
|
Per Request
|
Physical Dimensions
|
Dimensions (WxHxD)
|
374 x 316 x 92 mm
|
416 x 354 x 100 mm
|
Environment
|
EMI / Safety
|
CE, FCC Class A
|
Operating Temperature
|
0˚C ~ 35˚C (32˚F ~ 95˚F)
|
Storage Temperature
|
-10˚C ~ 40˚C (14˚F ~ 104˚F)
|
Relative Humidity
|
10% ~ 90% (Non-condensing)
|
Optional Peripherals
|
Magnetic Stripe Card Reader
|
MCR Single/Dual/Triple Track
|
2-in-1 / 3-in-1 Module
|
MCR+i-Button/MCR+RFID/MCR+Fingerprint/
MCR+Smartcard+i-Button
|
Scanner Module
|
Laser Scanner: Metrologic IS3480 with Speaker 2W x 2
|
Wireless LAN
|
802.11 b/g/n Wireless LAN Module
|
