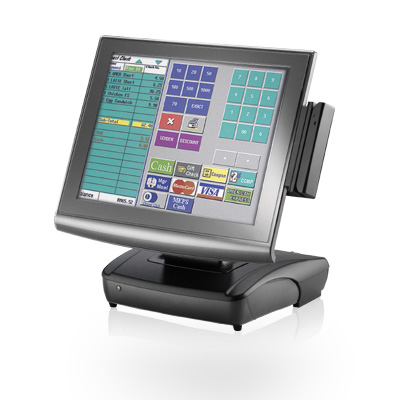

Model
|
RP-3512C
|
RP-3515C
|
RP-3517C
|
| Processor |
Intel® Atom™ N270, 512K L2 Cache, 1.6Ghz, 533Mhz FSB
|
| System Memory |
1 GB Standard, Maximum 4 GB (2 x 200-pin DDR2)
|
| Power Supply |
150W (12V / 7.5A) External Power Adaptor
|
| Storage Device |
1 x 2.5" SATA HDD
|
| Speaker |
Internal Speaker 2W x 2
|
| Construction |
Aluminum Die-casting, Plexi-Glass Acrylic (Front Bezel)
|
| Housing Color |
Black / Silver
|
| Touch LCD Display |
| Size / Resolution |
12”TFT LCD / 800x600
|
15”TFT LCD / 1024x768
|
17”TFT LCD / 1280x1024
|
| Brightness |
400 cd/m² (CCFL)
|
250 / 350 cd/m² (CCFL)
|
380 cd/m² (CCFL)
|
| Touch Screen |
5-Wire Resistive Touch
|
5-Wire Resistive Touch
|
5-Wire Resistive Touch
|
| |
| I/O Ports |
| Serial Port |
1 x Internal: COM3 (Touch)
|
|
5 x External: COM1, COM2, COM5, COM6 (DB9), COM4 (RJ45)
|
| USB Port |
4 x Internal (1 MSR / IC Card, 1 WiFi, 2 Reserved), 4 x External
|
| Printer Port |
1 x Bi-directional Parallel port
|
| Cash Drawer Port |
1 x RJ11 (12V)
|
| LAN Port |
1 x RJ45 Giga LAN
|
| Video Port |
1 x VGA
|
| Audio Port |
1 x Line-out
|
| DC Output |
1 x 12V DC Jack 2.5 mm
|
| |
| OS Supported |
| Windows |
Windows XP, Windows XPE, POSReady 2009, Windows 7
|
| Linux |
Per Request
|
| |
| Physical Dimensions |
| Dimensions (WxHxD) |
325 x 345 x 255 mm
|
375 x 390 x 255 mm
|
416 x 433 x 280 mm
|
| |
| Environment |
| EMI / Safety |
CE, FCC Class A
|
| Operating Temperature |
0˚C ~ 40˚C (32˚F ~ 104˚F)
|
| Storage Temperature |
-10˚C ~ 55˚C (14˚F ~ 131˚F)
|
| Relative Humidity |
10% ~ 90% (Non-condensing)
|
| |
| Optional Peripherals |
| Magnetic Stripe Card Reader |
Integrated MCR Module (Single / Dual / Triple Track Selectable)
|
| 2-in-1 / 3-in-1 Module |
Integrated MCR + i-Button / MCR + RFID / MCR + Fingerprint / MCR + Smartcard + i-Button
|
| 2nd Display |
Integrated 8.4" / 12.1" / 15" Pole-type LCD Display (Touch Screen Optional)
|
| Customer Display |
Integrated VFD / LCM Pole-type Customer Display
|
| Wireless LAN |
Integrated 802.11 b/g/n Wireless Module
|
| 2nd Storage Device |
SATA DOM
|
