| Specification |

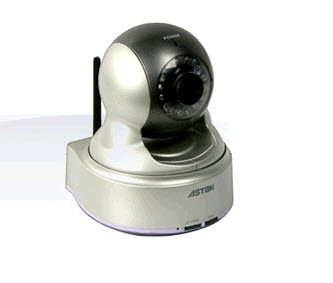

FI8608W |
| Image Sensor |
Image Sensor |
1/4"Color CMOS Sensor |
| Display Resolution |
640*480 Pixels(300k Pixels) |
| Lens |
f: 3.6mm, F:2.4 (IR Lens) |
| Mini. Illumination |
0.5Lux |
| Audio |
Input/Output |
Linear Input/Output, which can
realize two-way voice the intercom
|
| Audio Compression |
G.711/G.726, Audio sampling
Bit rate 128kbps ~ 2.048Mbps
|
| Video |
Image Compression |
H.264 |
| Light Frequency |
50Hz, 60Hz |
| Image Resolution |
VGA（640*480），QVGA（320*240），QQVGA（160*120） |
| View |
H.264 dual streaming |
| Image adjust |
The brightness, contrast, saturation,
chromaticityt, is adjustable
|
| White balance |
Automatic, Indoor, outdoor , is adjustable |
| Infrared mode |
Automatic , manual (on/off) |
| Night visibility |
Φ5mm 11 IR LEDs, Night visibility up to 8 metres |
| Network |
Ethernet |
One 10/100Mbps RJ-45 |
| Supported Protocol |
TCP/IP、UDP/IP、HTTP、SMTP、FTP、DHCP、DDNS、UPNP |
| Wireless Standard |
WIFI(IEEE802.11b/g/n) |
| Support IP address |
static IP address, dynamic IP address |
| Alarm |
Alarm detection |
The motion detecting, detection threshold Settings |
| Alarm inform |
Support Email、FTP etc alarm inform way |
| Hardware Interface |
SD CARD |
SD CARD (Support to 32G) |
| POWER Interface |
DC 5V/2.0A (EU,US,AU adapter or other types optional),
Power Consumption ﹤8 Watts
|
|
Audio Input/
Output Interface
|
One audio input jack,One audio outputt jack. |
| Reset Buttons |
One Reset |
| Ethernet |
One 10/100Mbps RJ-45 |
| Wireless Interface |
WIFI antenna |
| Other |
Pan/Tilt Angle |
Horizontal:270° & Vertical: 120° |
| LED Explain |
One SD CARD Instructions，One power Instructions |
| Physical |
Dimension |
117(L) x114(W) x129mm(H) |
| Gross Weight |
814g (Color Box Size:245x145x165mm) |
| Net Weight |
348g (accessories included) |
| Environment |
Operate Temper |
0° ~ 55°C (14°F ~ 122°F) |
| Operate Humidity |
10% ~ 80% non-condensing |
| Storage Temper |
~ 60° (14°F ~ 140°F) |
| Storage Humidity |
0% ~ 90% non-condensing |
| PC Requirements |
CPU |
2.0GHZ or above (suggested 3.0GHz) |
| Memory Size |
256MB or above (suggested 1.0GHz) |
| Display Card |
64M or above |
| Supported OS |
Microsoft Windows 2000/XP,Vista,Windows7,Mac OS,Linux |
| Browser |
IE6 and above version or compatible browser,
Firefox or other standard browsers
|
| Certificate |
CE,FCC |
CE,FCC |
