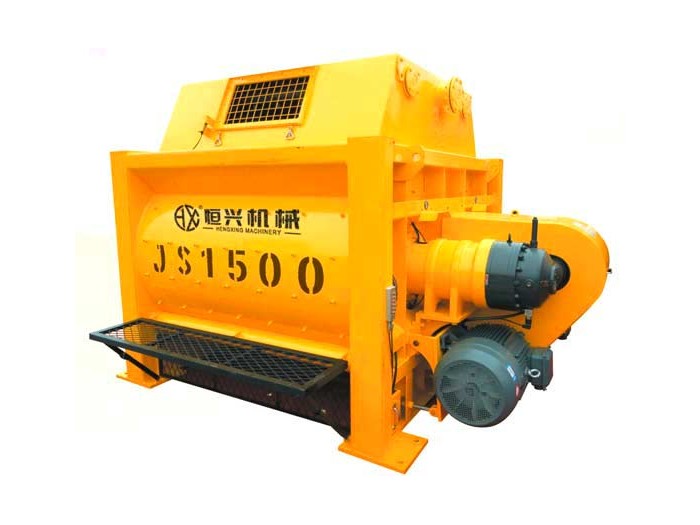

JS1500 concrete mixer has the advantages of high automation, good mixing quality,
high efficiency, low energy consumption, low noise, easy operation, high discharging speed,
long service life of liner plate and blade, and easy maintenance,etc.
It is suitable for plasticity, dry hard, lightweight aggregate concrete and all mortar mixing.
The machine uses a motor discharge, with supporting the use of dump trucks,
it is the ideal equipment of various construction sites.
| Technical parameters |
| Model |
JS1500 |
| Discharging capacity |
1500L |
| Feeding capacity |
2400L |
| Productivity |
≥75m³/h |
| Maxium aggregate size(pebble/crushed stone) |
80/60 |
| Mixing blade |
Rotation speed |
25.5r/min |
| Quantity |
2×9 |
| Mixing motor |
Model |
Y225M-4 |
| Power |
45kw |
| Hoist motor |
Model |
YEZ180L-4 |
| Power |
18.5KW |
| Water pump motor |
Model |
KQW65-100I |
| Power |
3KW |
| Lifting speed |
23m/min |
| Dimension |
Conveying |
5068× 2250× 2440mm |
| Working |
9645× 3436× 9700mm |
| Total weight |
11130kg |
| Discharging height |
3800mm |
|
