• Máy kẻ đường tự động sơn nóng

  • Mã hàng :Máy kẻ đường tự động sơn nóng
  • Bảo hành : 12 tháng

  • Giá : 0 ( Giá chưa bao gồm VAT )
  • Mua hàng
  • Giá bán niêm yết trên Website là giá phải tính thuế VAT. Kính mong quý khách lấy hóa đơn đỏ khi mua hàng để tuân thủ đúng quy định của pháp luật

Thông tin sản phẩm

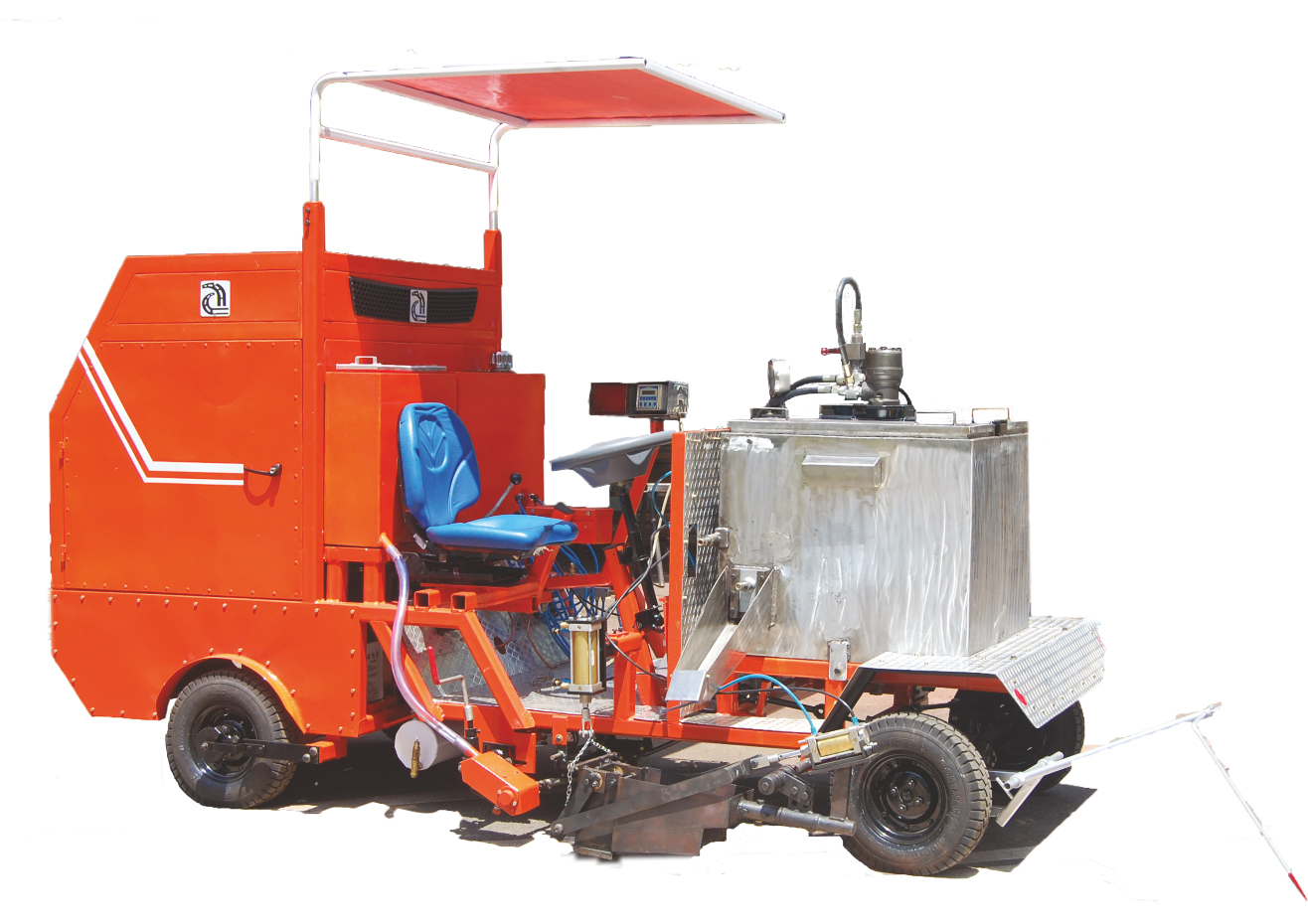

Automatic thermoplastic road marking machine is fully automatic running thermoplastic marking machine. Large capacity thermoplastic paint tank and glass beads tank is special designed for long distance road marking project. Reliable hydraulic drive system and powerful engine can greatly improve the line marking efficiency.

Dimension 4000*1910*2100mm
Weight 2 to 3 tons
Paint Tank Capacity 200L
Marking Width 50mm to 300mm
Air Compressor Delivery Rate 0.45m³/min
Engine Power 28.6kw
Driving Speed 0 to 22km/h
Heating System Energy efficient burner
Insulation System Heat transfer oil and insulation cotton
Driving Syetem Hydraulic drive system
