Thông tin sản phẩm
AVK018ZP

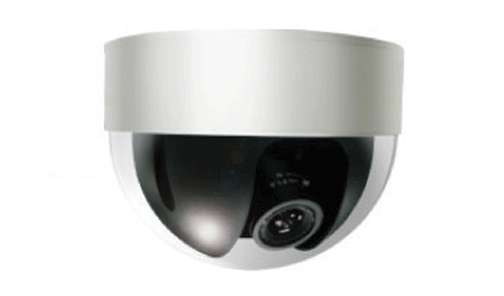

H.R Dome Camera
(Electronic Lens Control )
*** Overview
- This dome camera, AVK018, is a controllable camera, allowing users to manually adjust & set camera parameters from a DVR without additionally connecting RS485 control wires. It can be used with our DCCS-enabled DVR series for directly control, or with other brand’s DVR controlled via our optional DCCS control box, AVK-T1.
*** FEATURES
- Supports DVR / Camera Communication System (DCCS) Technology
-- There’s no need to additionally connect RS485 control wires for camera control because the control signals can be transferred by coaxial cables directly.
-- Camera installation is highly simplified to lower labor cost and working hours.
- Easy Focus Adjustment
-- Focus adjustment can be done remotely on DVR or with the optional control box, AVK-T1. No need to be onsite.
- Camera Parameter Adjustable Based on Different Needs
*** SPECIFICCATIONS
|
MODEL
|
AVK 018ZB
|
|
Pick up Element
|
1/3" HR color CCD
|
|
Number of Pixel
|
771(H) x 492(V) / 753(H) x 582(V)
|
|
Resolution
|
520 TVL
|
|
Min. Illumination
|
0.15 Lux / F1.8
|
|
S/N Ratio
|
More than 48dB (AGC off)
|
|
Electronic Shutter
|
1/60 (1/50) to 1/100,000 sec
|
|
Lens
|
f4.0mm ~ f9.0mm
|
|
Lens Angle
|
75° ～ 36°
|
|
Iris Mode
|
AES
|
|
White Balance
|
ATW
|
|
Video Output
|
1.0 Vp-p composite, 75Ω
|
|
Power Source (±10%)
|
DC 12V / 2.9W
|
|
Power Consumption (±10%)
|
240mA
|
|
Dimensions (mm)**
|
124.3(Ø) x 102(H)
|
|
Optional Peripheral
|
AVK-T1
|
* Specifications are subject to change without notice.
** Dimensional Tolerance: ± 5mm
