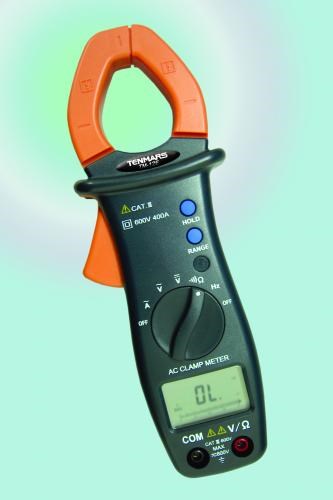

Autoranging AC 400A Clamp Meter
- 3 3/4 digits LCD and analogue bargraph.
- Auto range, auto power off (30 minutes).
- High speed bargraph.
- Function keys: Data Hold, Range Hold.
- Test ranges: ACV, ACA, DCV, Ohm, Frequency, Continuity.
- The maximum conductor size is 30mm.
- Continuity test is designed buzzer sound when impedance in objective's circuit below 40 Ohm.
SPECIFICATION
Model
|
TM-12E
|
Max measuring current
|
400A
|
Display counts
|
4000
|
Max conductor size
|
30mm
|
AC Current
|
0.1A~400A +/- (2.0%+10)
|
AC Voltage
|
0.1V~600V +/- (1.5%+5)
|
DC Voltage
|
0.1V~600V +/- (1.0%+3)
|
Resistance
|
0.1 ~ 400 Ohm +/- (1.0%+5)
|
Continuity buzzer
|
YES (< 40 Ohm)
|
Diode
|
NA
|
Frequency
|
1Hz ~ 400KHz +/- (0.8%+3)
|
Bargraph
|
YES
|
Autorange
|
YES
|
Auto power OFF
|
YES (30 minutes)
|
Data hold
|
YES
|
Dimension
|
195*64*39mm
|
Weight
|
280g
|
|
