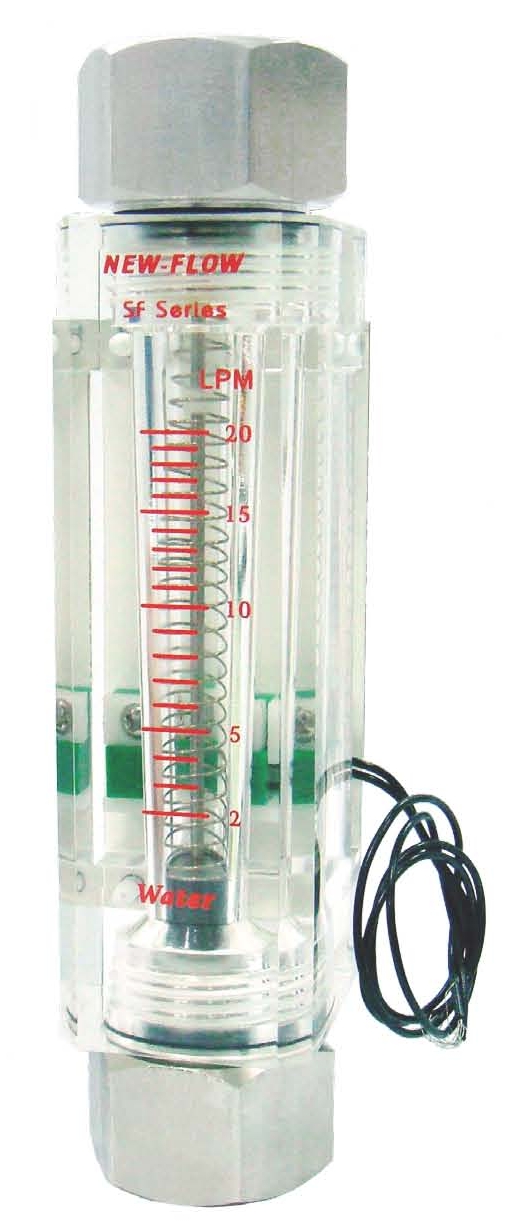

ĐỒNG HỒ ĐO LƯU LƯỢNG SF100
Model : SF100
Manufacture : NEW - FLOW
Service : liquid, oil
Wetted parts material : Body-Acrylic Plastic O-ring-NBR, Float-magnet coating with polypropylene (P.P)
Connection material : SS316
Connection size : 3/8", 1/2", 3/4" NPT female available
Mounting : vertical and horizontal available, various flow directions
Temperature & pressure limits : 150 psig(10bar) @ 100°F(38°C)
Temperature limit : -24°C~+54°C
Accuracy : ±5% full scale
Alarm switch : one or two setting points, form A N.O. type bistable reed switch
Switch rating : AC 125V 0.5A / DC 100V 10W / Max. DC 250V<1mA
Weight : 0.45~0.5kg
(Contact setting point should be within 10% to 80% of FS)
Ordering information
| Code |
Flow Range |
| A |
0.6~4 LPM |
E |
3~30 LPM |
| B |
1.6~10 LPM |
F |
5~50 LPM |
| C |
2~20 LPM |
G |
6~60 LPM |
| D |
6~40 LPM |
|
|
| Code |
Alarm Switch |
| 1R |
One setting point |
| 2R |
Two setting points |
| 0 |
Without alarm |
| Code |
Process Connection in Female |
| A |
3/8" NPT (L=150mm) |
| B |
1/2" NPT (L=150mm) |
| C |
3/4" NPT (L=162mm) |
| Code |
Flow Direction |
| BT |
Bottom to Top |
| TB |
Top to Bottom |
| RL |
Right to Left |
| LR |
Left to Right |
