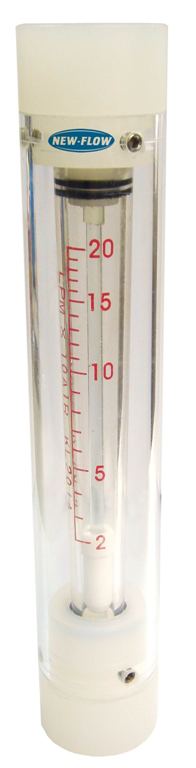

ĐỒNG HỒ ĐO LƯU LƯỢNG P-TYPE
Model : P-TYPE
Manufacture : NEW - FLOW
Measuring the flow rate for
Chemical process system
Water treatment system
Industrial flow system
Service Condition
Viscosity
Max working temperature : Metal : 100°C
Plastic : 60°C
Max working pressure:
(1) Body material : PS, PI: 15kg/cm²,
Plastic: 6kg/cm²,
(2) Glass tube : 6 kg/cm²,
(3) P.C tube : 10 kg/cm²,
Instant pressure : 15kg/cm²
Alarm switch available (N.O)
Switch rating : AC 125V 0.5A / DC 100V 10W /
Max. DC 250V<1mA
Accuracy : ±2.5% F.S
| Range |
H2O (MAX)L/min |
AIR (MAX)NL/min |
DIMENSION |
| Size |
L |
H |
A |
PT/NPT |
| 6A |
0.03-0.3 |
0.5-5.0 |
200 |
165 |
- |
1/4" |
| 10A |
0.1-1.0 |
2-20 |
200 |
165 |
- |
3/8" |
| 15A |
1-10 |
20-200 |
240 |
200 |
- |
1/2" |
| 20A |
2-20 |
30-300 |
280 |
240 |
- |
3/4" |
| 25A |
5-50 |
100-1000 |
280 |
240 |
- |
1" |
| 32A |
10-100 |
200-2000 |
280 |
240 |
- |
1¼ |
| 40A |
20-200 |
300-3000 |
305 |
240 |
- |
1½ |
| 50A |
40-400 |
500-5000 |
315 |
240 |
- |
2" |
| Code |
Model |
| PS |
stainless steel wetted parts |
| PI |
steel wetted parts |
| PV |
plastic wetted parts |
| Code |
Size |
| (1) |
6A |
| (2) |
10A |
| (3) |
15A |
| (4) |
20A |
| (5) |
25A |
| (6) |
32A |
| (7) |
40A |
| (8) |
50A |
| Code |
Connection thread (M-Male,F-Female) |
| (1) |
PTM |
| (2) |
PTF |
| (3) |
NPTM |
| (4) |
NPTF |
| Code |
Body (wetted parts) material |
| (1) |
CS |
| (2) |
SS304 |
| (3) |
SS316 |
| (4) |
SS316L |
| (5) |
P.V.C |
| (6) |
P.P |
| (7) |
PVDF |
| (8) |
Teflon |
| Code |
Indicating Tube material |
| (1) |
Glass |
| (2) |
PC (plastic) |
| Code |
Float material |
| (1) |
SS304 |
| (2) |
SS316 |
| (3) |
P.V.C |
| (4) |
P.P |
| (5) |
Nylon |
| (6) |
PVDF |
| (7) |
Teflon |
| Code |
Seal material |
| (1) |
NBR |
| (2) |
Viton |
| Code |
Protection Supporter material |
| (1) |
SS304 |
| (2) |
SS316 |
| (3) |
Acrylic plastic |
| Code |
Flow range |
| L |
0.03~400 L/min for liquid |
| G |
0.5~5000 NL/min for gas |
| Code |
Alarm Switch |
| 1R |
One setting point |
| 2R |
Two setting points |
| 0 |
Without alarm |
