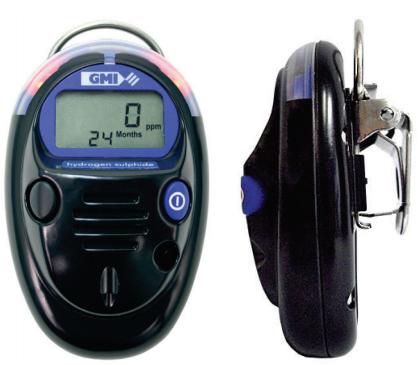

Features
- On/Off capability
- Single gas monitors for H2S, O2, CO, SO2
- Easy one button operation
- Displays real time value
- Datalogging as standard
- Includes fully programmable menu for alarms and latching/non-latching settings
- Alarms: audible, visual, vibrating, Time Weighted Average (TWA), Short TermExposure Limit (STEL), low battery and end of life
- Rugged stainless steel alligator clip
- Backlit LCD display
- IP67 - dust tight, and waterproof up to 1m/3ft
- Shipped with recyclable packaging
Applications
Petrochemical, Off-Shore, Chemical, Forklift Operations, Pulp and Paper, Cities, & Municipalities, Gas and Oil, Fire Departments, Boiler Room Monitoring. and more...
Technical Specification
Measuring Ranges
H2S 0 - 100ppm in 1ppm increments
O2 0 - 25% in 0.1% increments
CO 0 - 500ppm in 1ppm increments
SO2 0 - 20ppm in 0.1ppm increments
(pending)
IECEx: Ex ia IIC T4 Ga
ATEX: Ex II 1G Ex ia IIC T4 Ga
UL913: Class I, Division 1, Groups A, B, C, D T4
MED: 96/98/EC As amended
CE
CSA: Class I, Division 1, Groups A, B, C, D T4 (pending)
Alarms
- Visual 360o light bar, Vibrating, Audible alarm: 95dB
- User programmable, includes Time Weighted Average (TWA) and Short Term - Exposure Limit (STEL)
- Physical Properties
- Dimensions (Height x Width x Depth): 85 x 55 x 29 mm (3.4" x 2.2" x 1.16")
- Weight: 86g (3oz)
Environment
Temperature Limits: -20oC to +50oC (-4oF to +122oF)
Humidity: 0 - 98% RH (non-condensing)
Display: LCD backlit display
Power Supply: Li-SOCl2 heavy duty 3.6V battery
Enclosure: High impact ABS poly blend
IP Rating: IP67 (Dust-tight and waterproof to 1m/3ft)
