1. INTRODUCTION

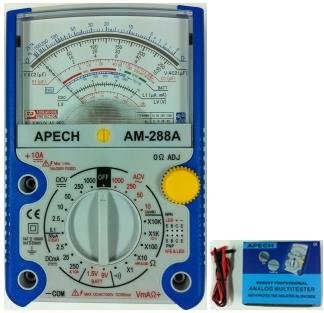

This Multi-meter is an battery-powered, rear tilt-standby, easy-operated, heavy-safety handheld instrument with robust protective holster alongside and the adjustable back with hook-up design. It can offer accurate, reliable measurements of DC/AC Voltage, +/-Null DCV, DC Current, Resistance and DioDE, LED, Transistor, Decibels, Continuity test and Capacitance with very high sensitive quality movement, double-sides glass-epoy PCB & good – designed circuit, as well as mirrored AL dial plate esc. It has the perfect full overload & mis-used protection via two Fuses, Oxide Varactor & Diodes. It is an instrument for indoor use in the laboratory, school, workshop, hobby and home application.
2. SPECIFICATIONS
Safety Category: IEC61010-1, CAT II 1000V, CAT III 500V and Pollution Degree 2.
Common Environment: 23ºC ± 5ºC, less than 75% RH.
Temperature ranges: 0 ºC to 40 ºC, 32ºF to 104 ºF for operating condition. -10 ºC to 50ºC, 14 ºF to 122 ºF for Storage condition.
Humidity Scope: operating condition less than 90% RH. Storage condition: less than 80% RH.
Size: 160(W)x 105(D)x 40(H) MM
Weight: 390g approx. (including batteries 3 pcs)
Accessories: one set of Test Leads; two Spare Fuses: 0.5A/250V & 10A/250V,
Additional Option Accessory, CT-1 special for capacitance measurements 1 set
Test Function
|
Range
|
Accuracy
|
Remarks
|
DC V
|
0-0.1-2.5-10-50-250V-1000V
|
±3% FSD
±4% FSD. For 1000V
|
Input Impendance:
20KΩ/V
Overload protection:
Max.1000V AC/DC
BUT 0.1V/2.5V/10V
250V Max
|
AC V
|
0-10-50-250V
-1000V
|
±4% FSD
±5% FSD. For 1000V
|
Input Impendance:
9KΩ/V
Overload protection:
Max.1000V AC/DC
BUT
10V/50Vonly
250V Max
Band with: ~10KHz40
|
DC mA
|
0-0.05-2.5-25-250 mA,
10A
|
±3% FSD
±4% FSD. For 10A
|
Drop Voltage: 250mV, overload protected by Fuses 0.5A/250V& 10A/250V at 10A range, and Oxide Varactor <250v, AC/DC(5s)
Max.testting time 1 min. for 10A
|
Ω
|
X 1: 0.2~2KΩ Midscale at 20Ω
X 10: 2~20KΩ Midscale at 200Ω
X 100: 20~200KΩ Midscale at 2000Ω
X 1K: 200~2MΩ Midscale at 20KΩ
X 10K: 2K~20MΩ Midscale at 200KΩ
|
±4% of ARC of Scale Length
|
Overload protected by the oxide Varactor & Fuse<250V, AC/DC (5s)
|
Capacitance (uF)
|
0.025-0.25-2.5uF(C2), 2000uF(C1)
|
±3% FSD Approximate Value
|
Use the Aaccessory Kit, Use the Rx1K range
|
BATT Check
|
0~1.5V: GOOD-?-BAD
0~9V: GOOD-?-BAD
|
±5% of ARC of Scale Length
|
Load current:
270mA for 1.5V
250mA for 9V
Overload protected by the oxide Varactor & Fuse<250V, AC/DC (5s)
|
Transistor check
|
hPE: 0-1000 via special Hfe socket
|
Approximate Value
|
At Ω x 10 range
|
Led diod check
|
Via special Hfe socket
|
Approximate Value
|
At Ω x 10 range
|
Decibel
|
-22dB~+62 dB (0dB=1mW at 600Ω)
|
Approximate Value
|
|
Continuity Check
|
Beeper sounding under 200 Ohm
|
|
Overload protected by the oxide Varactor & Fuse<250V, AC/DC (5s)
|
POWER Source
|
Internal Battery: R6P, AA, 1.5V 2pcs, 6F22, NEDA 1604, 9V 1
|
|
|
