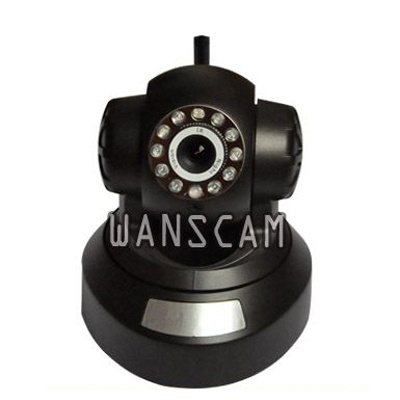

Model No.: AH-C2WA-B168
|
| Features |
System Security |
Supports three-level account, password, user authority management |
| DDNS |
Free DDNS bounded i.e., http://demo.88safe.com |
| IE multi-channel view client(free) |
No need to install software, support multi-channel monitor &management & check alarm picture via IE |
| Cell Phone View |
Support Iphone,Windows Mobile,Symbian,Android cell phone view . |
| SD card |
support 16G TF card |
| CPU |
Microcomputer Processor |
32Bit RSIC Embedded Processor |
| Viedo |
Compression Format |
H.264 |
| Signal System |
CMOS 300,000 pixel |
| Frame Rate |
25fps |
| Resolution |
VGA(640*480), QVGA(320*240) |
| Video Adjustment |
Brightness and contrast adjustable, Auto White Balance, Auto Backlight Compensation |
| Lens |
Standard : 3.6 mm |
| Filter Switch |
Built-in IR Cut,With self-check function,Double optical fliter automatic switch, no color deviation indoor or outdoor. |
| Nightvision |
Nightvision |
10 Φ5 LED IR distance: 10m |
| Audio |
Input / Output |
Built-in Microphone / Built-in Speaker |
| Audio Compression |
ADPCM |
| Audio Gain |
AGC |
| P/T |
Rotation Angle |
Pan: 0°-270° Tilt : 0°-90° |
| Rotation Speed |
15° / s |
| Network |
Connection |
RJ-45 , 10/100Mb auto-adapted Ethernet |
| Protocol |
Support TCP/IP, HTTP, ICMP, DHCP, FTP, SMTP,PPPoE, etc. |
| Wireless |
WIFI,802.11B/G |
| Simultaneous Visitors |
Max. 8 Visitors with IE , 4 Visitors with RTSP for cellphone |
| IP Mode |
Dynamic IP address, Static IP address, PPPOE |
| Others |
Shape / Use Environment |
Demo / Indoor use |
| Power |
DC5 V, 2A |
| Working Temperature |
-10~50 °C |
| Working Humidity |
95% RH |
| Size |
Packing Size:200*120*179mmmm (LxWxH) |
| Weight |
N.W.:550g ; G.W. 680g |
| Accessories |
Adaptor, CD (including introduction), Manual, Bracket, Screw. |
| Alarm |
Motion Detection |
Support as many as 10 times/ support 4 Motion detection regions |
| IO |
1/1 |
| Alarm Notice |
Support Email photo, FTp photo etc. |
| System |
Requirement |
Microsoft Win98 SE/ME/2000/XP/Vista /Win 7
Mac OS Internet Explorer/Mozilla Firefox/Google Browser |
