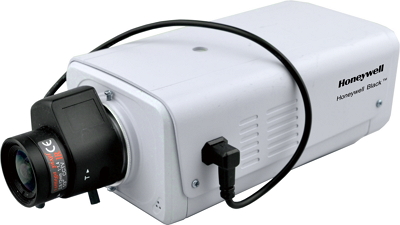

| Model |
CALIPB-1A |
CALIPB-1AP |
| Image Sensor |
1/3" ultra-low illumination CMOS |
| Effective Pixels |
1280 (H) x 960 (V) |
| Minimum Illumination |
Color: 0.01Lux @ (F1.2, AGC ON)
B/W: 0.001Lux @ (F1.2, AGC ON) |
| Shutter Speed |
Auto: 1/50 (1/60) sec, 1/120 sec, 1/250 sec, 1/500 sec, 1/1000 sec, 1/2000 sec, 1/4000 sec,
1/10,000 sec (millisecond adjustable) |
| Lens Mount |
C/CS interface |
| Lens |
DC drive |
| DWDR |
ON/OFF |
| Day & Night |
TDN, IR cut removable |
| Day & Night mode |
Auto, Color, Black & White |
| BLC |
ON/OFF |
| Auto Gain Control |
ON/OFF 0~100 adjustable |
| Slow Shutter |
None, Low, Medium, High |
| NT Level (DNR) |
Day / Night, 0~5 adjustable |
| Image Set |
Brightness, Contrast, Saturation, Hue can be customized through CMS client and IE browser |
| OSD Display |
Time title, Channel title |
| Video Compression |
H.264 High Profile dual-stream |
| Image Resolution & Frame Rate |
Main Stream:
50Hz: 25fps (720P: 1280 x 720), (1.3M: 1280 x 960)
60Hz: 30fps (720P: 1280 x 720), (1.3M: 1280 x 960)
Sub-Stream:
50Hz: 25fps (D1: 704 x 576), (CIF: 352 x 288)
60Hz: 30fps (D1: 704 x 576), (CIF: 352 x 288) |
| Bite Ratet |
H.264: 32K-6Mbps Image resolution lowest / lower / general / high / higher / highest selectable |
| Bite Rate Type |
CBR / VBR |
| Audio Compression |
G.711a |
| Network Interface Protocol |
ONVIF 2.0 |
| Support Protocol |
TCP/IP, HTTP, DHCP, DNS, DDNS, PPPoE, SMTP, NTP (HTTPS, SIP, 802.1x, IPv6 ) |
| Browser |
IE 6.0 to IE 11.0 |
| Alarm Trigger |
I/O trigger, video motion, video blind, video loss, intelligent analysis (line crossing), device disconnect |
| Motion Detection |
396 zones |
| Privacy Masking (Region Cover) |
4 zones |
| Max. User Access |
5 users |
| Audio Input / Output |
1 CH 3.5mm jack port |
| Ethernet |
1 RJ45 10/100Mbps self-adaptive Ethernet interface |
| Connector |
1 RS-485 Interface |
| Alarm Input / Output |
1 CH Input, 2CH Output
Video Output |
| Video Output |
1Vp-p Composite output (75Ω/BNC) |
| Storage |
Network storage / SD card slot (max 32GB) |
| USB Port |
1 USB Port for Wi-Fi / 3G Extension
Reset Button |
| Reset Button |
YES |
| CMS |
CAL-CMS200 |
| Mobile View APP |
CALNVRView for iPhone, iPad, Android |
| Operating Temperature |
-10℃~60℃, |
| Operating Humidity |
Less than 90% ( non-condensing) |
| Power Supply |
DC12V±10% |
| Power Consumption |
3W (excluding external loading) |
| Power over Ethernet (PoE) |
N/A |
IEEE 802.3af |
| Dimensions |
144(D) x 56.5(H) x 78.5(W) mm |
| Weight |
500g |
| Certificate |
CE, FCC, C-tick |
