| Standard Features |

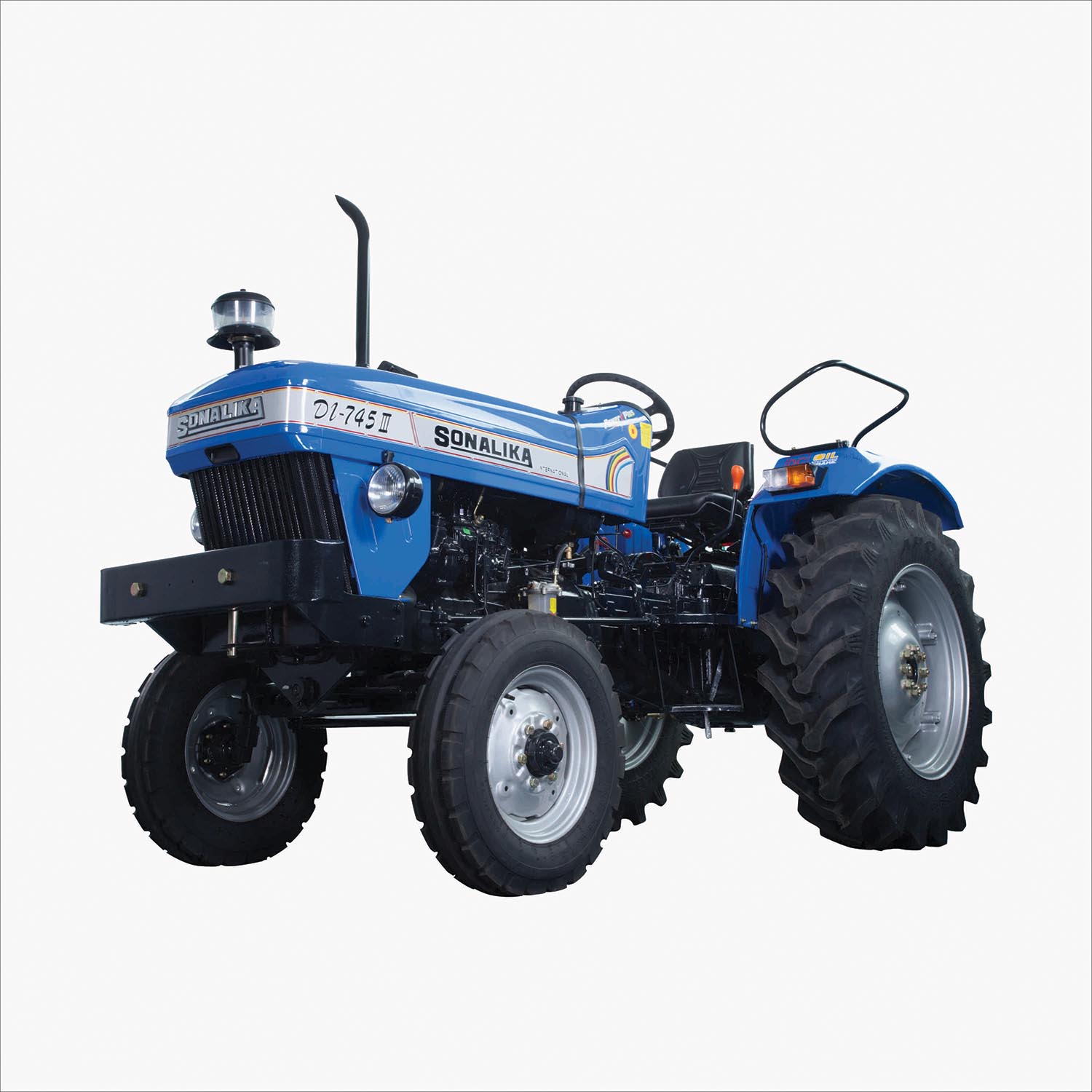

DI 745 III 2WD |
| Engine |
| Engine Type |
3102 IL with coldstart |
| HP Category |
47 |
| No. of Cylinders |
3 |
| Aspiration |
Natural Aspiration |
| Bore/Stroke(mm) |
102/118 |
| Cubic Capacity (cc) |
2893 |
| Rated RPM (+/-25mm) |
2100 |
| Air cleaner |
Wet air cleaner |
| Max Torque (Nm) @ RPM |
190(+/-5%)@1200 RPM(+/-100) |
| Transmission |
| Drive |
2WD |
| Clutch |
Single Clutch |
| Gearbox |
8F+2R |
| Transmission |
Constant mesh |
| PTO |
| PTO (rpm) |
540 RPM |
| PTO (actuation) |
Mechanical,Hand operated |
| Diff Lock |
| Diff. Lock(mechanical) |
No |
| Electrical |
| Battery |
12V,88 AH |
| Alternator |
12V,36Amp |
| Seven pin trailer socket |
No |
| DCV |
| Auxiliary hydraulic circuit |
No |
| No.of Spool valves |
No |
| Steering |
| Steering |
Mechanical Steering |
| Tyre |
| Front |
6*16 |
| Rear |
13.6*28 |
| Speed(Forward) |
| Max Speed(Km/Hr) |
33.26 @ 2100 |
| Min Speed(Km/Hr) |
2.40 @ 2100 |
| Hydraulics |
| 3 point linkage |
CAT2 |
| Stay Bars |
Yes adjustble check chain |
| Hydraulic lifting capacity |
1600 KG |
| Brakes |
| Brakes |
Dry Disc Brake |
| Type of actuation |
Mechanical |
| Hand brake |
Yes |
| Others |
| Fuel Indicator gauge |
Yes |
| Canopy |
No |
| Trailer hitch |
Standard rear toe hook |
| Driver Seat |
Yes adjustable with safety emblem |
| Registration Plate with light |
No |
| Front Toe Hook |
Yes |
| Front & rear weights |
Bumper only |
| Drawbar |
Normal draw bar |
| ROPS |
No |
| Safety Switch |
| Neutral safety switch |
No |
| P.T.O Safety switch |
No |
| Clutch Safety Switch |
No |
| Capacity (ltrs)(+/-5%) approx |
| Fuel tank |
55 |
| Eng Oil |
8.2 |
| Hyd+Tran |
50.3 |
| Dimension & Weight(+/-5%) |
| Gross Weight(kg) |
1995 (with standard ballast) |
| Wheel Base (mm) |
1960 |
| Total Length (mm) |
3500 |
| Total Width (mm) |
1710 |
| Height (mm) |
2310 |
| Ground Clearance (mm) min |
425 |
| Front Track, (mm), min.-max. |
1295 |
| Rear Track, (mm), min.-max. |
1345 (std.) & 1425-1885 |
| Turning Diameter |
| Without Brakes (m) |
5.93 m ( R ) – 5.91 m ( L ) |
| Turning diameter. With Brakes (m) |
6.49 m ( R ) – 6.09 m ( L ) |
