| Standard Features |

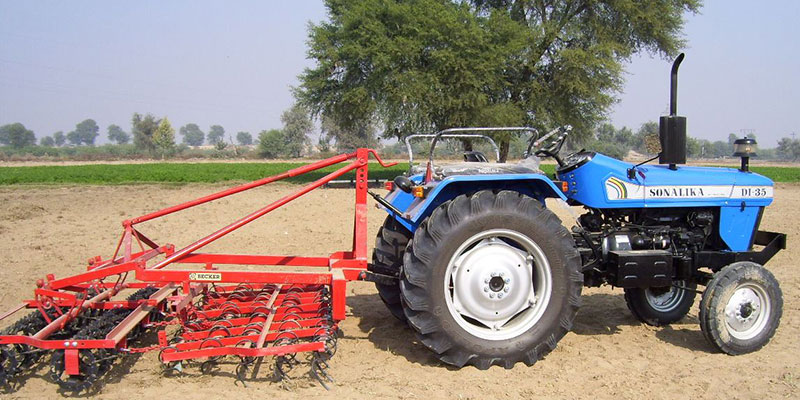

DI-35 2WD – ECONOMICAL |
| Engine |
| Engine Type |
3100 ELI with coldstart |
| HP Category |
35 |
| No. of Cylinders |
3 |
| Aspiration |
Natural Aspiration |
| Bore/Stroke(mm) |
100/118 |
| Cubic Capacity (cc) |
2780 |
| Rated RPM (+/-25mm) |
2000 |
| Air cleaner |
Wet Air Cleaner |
| Max Torque (Nm) @ RPM |
157(+/-5%)@1200 RPM(+/-100) |
| Transmission |
| Drive |
2wd |
| Clutch |
Single Clutch |
| Gearbox |
8F+2R |
| Transmission |
Sliding mesh |
| PTO |
| PTO (rpm) |
540 rpm |
| PTO (actuation) |
Mechanical, Hand operated |
| Diff Lock |
| Diff. Lock(mechanical) |
Yes |
| Electrical |
| Battery |
12V,88 AH |
| Alternator |
12V,36Amp |
| Seven pin trailer socket |
Yes |
| DCV |
| Auxiliary hydraulic circuit |
No |
| No.of Spool valves |
No |
| Steering |
| Steering |
Mechanical Steering |
| Tyre |
| Front |
6*16 |
| Rear |
12.4*28 |
| Speed(Forward) |
| Max Speed (km/hr) |
31.41@2000 |
| Mini Speed (km/hr) |
3.01@2000 |
| Hydraulics |
| 3 point linkage |
CAT2 |
| Stay Bars |
Yes,adjustable |
| Hydraulic lifting capacity |
1200 kg |
| Brakes |
| Brakes |
Dry Disk Brake |
| Type of actuation |
Mechanical |
| Hand brake |
Yes,Independent |
| Others |
| Canopy |
No |
| Fuel Indicator gauge |
Yes |
| Driver Seat |
Yes,Adjustable with safety Emblem. |
| Trailer hitch |
Standard Rear Toe Hook. |
| Registration Plate with light |
Yes with E-marked light |
| Front Toe Hook |
Yes |
| Front & rear weights |
Base weight 54 kg and 1X34 Kg with Rear each wheel. |
| Drawbar |
Normal Drawbar |
| ROPS |
No |
| Safety Switch |
| Neutral safety switch |
No |
| P.T.O Safety switch |
No |
| Clutch Safety Switch |
No |
| Capacity (ltrs)(+/-5%) approx |
| Fuel tank |
55 |
| Eng Oil |
8.2 |
| Hyd+Tran |
50.3 |
| Dimension & Weight(+/-5%) |
| Gross Weight(kg) |
1890(with standard ballast) |
| Wheel Base (mm) |
1975 |
| Total Length (mm) |
3500 |
| Total Width (mm) |
1665 |
| Height (mm) |
2310 |
| Ground Clearance (mm) min |
380 |
| Front Track, (mm), min.-max. |
1325 Std. 1550 |
| Rear Track, (mm), min.-max. |
1325 Min – 1885 Max |
| Turning Diameter |
| With Brakes (m) |
5.64 m ( R ) – 5.53 m ( L ) |
| Without Brakes (m) |
6.6 m ( R ) – 6.5 m ( L ) |
