| Standard Features |

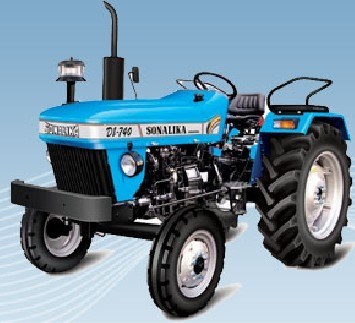

DI 740 III |
| Engine |
| Engine Type |
3100 ELI with coldstart |
| HP Category |
42 |
| No. of Cylinders |
3 |
| Aspiration |
Natural Aspiration |
| Bore/Stroke(mm) |
100/118 |
| Cubic Capacity (cc) |
2780 |
| Rated RPM (+/-25mm) |
2000 |
| Air cleaner |
Dry air Cleaner |
| Max Torque (Nm) @ RPM |
174(+/-5%)@1200 RPM(+/-100) |
| Transmission |
| Drive |
2WD |
| Clutch |
Dual clutch |
| Gearbox |
8F+2R |
| Transmission |
Constant Mesh |
| PTO |
| PTO (rpm) |
540 rpm |
| PTO (actuation) |
Mechanical,Hand operated |
| Diff Lock |
| Diff. Lock(mechanical) |
Yes |
| Electrical |
| Battery |
12V,88 AH |
| Alternator |
12V,36 Amp |
| Seven pin trailer socket |
Yes |
| DCV |
| Auxiliary hydraulic circuit |
1SA+1DA |
| No.of Spool valves |
3 |
| Steering |
| Steering |
Mechanical Steering |
| Tyre |
| Front |
6×16 |
| Rear |
13.6×28 |
| Speed(Forward) |
| Max Speed(Km/Hr) |
28.52 @ 2000 |
| Min Speed(Km/Hr) |
2.32 @ 2000 |
| Hydraulics |
| 3 point linkage |
CAT2 |
| Stay Bars |
Yes adjustable check chain |
| Hydraulic lifting capacity |
1600 KG |
| Brakes |
| Brakes |
Dry Disc Brake |
| Type of actuation |
Mechanical |
| Hand brake |
Yes |
| Others |
| Fuel Indicator gauge |
Yes |
| Canopy |
No |
| Trailer hitch |
Rotating rear toe hook |
| Driver Seat |
Yes,Adjustable with smv |
| Registration Plate with light |
Yes with light (E-Marked) |
| Front Toe Hook |
Yes |
| Front & rear weights |
Base weight 54 Kg |
| Drawbar |
Swinging drawbar with linkage crossbar |
| ROPS |
NO |
| Safety Switch |
| Neutral safety switch |
Yes |
| P.T.O Safety switch |
No |
| Clutch Safety Switch |
No |
| Capacity (ltrs)(+/-5%) approx |
| Fuel tank |
55 |
| Eng Oil |
8.2 |
| Hyd+Tran |
51.3 |
| Dimension & Weight(+/-5%) |
| Gross Weight(kg) |
2030 (with standard ballast) |
| Wheel Base (mm) |
1975 |
| Total Length (mm) |
3630 |
| Total Width (mm) |
1715 |
| Height (mm) |
2310 |
| Ground Clearance (mm) min |
390 |
| Front Track, (mm), min.-max. |
1315 (+/-250 for field & transport work) |
| Rear Track, (mm), min.-max. |
1345 (+/- 110 for field & +/- 150 for transport) |
| Turning Diameter |
| With Brakes (m) |
6.1 m ( R ) – 6.0 m ( L ) |
| Without Brakes (m) |
6.5 ( R ) -6.7( L ) |
