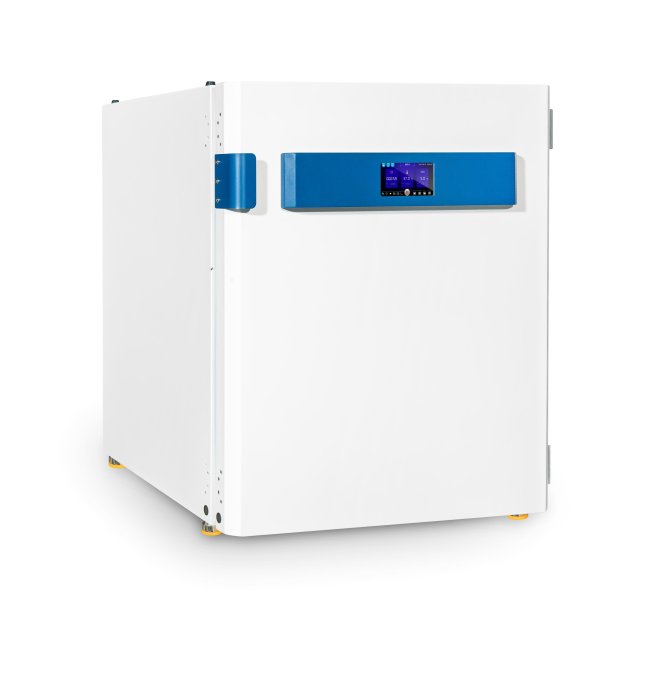

Tủ Ấm CO2 Phòng Thí Nghiệm Kolner KNX-50
|
Model
|
KNX-50
|
Application
|
used for drying, baking, and thermal treatment
|
Heating and air circulation type
|
6-side heating wire+breeze circulation system+air jacket design
|
Performance
|
Temperature range
|
RT+5~55℃
|
Temperature resolution
|
0.1℃
|
Temperature fluctuation
|
±0.1℃
|
Temperature uniformity
|
±0.35℃
|
CO2 concentration range
|
0~20%
|
CO2 concentration fluctuation
|
±0.5%
|
chamber humidity
|
≥90%RH
|
Structure
|
chamber material
|
SUS304 Cu mirror stainless steel
|
shell material
|
spraying cold rolled steel
|
thermal insulation material
|
PU
|
heating device
|
Nickel-chromium alloy heating wire with silica gel cover
|
CO2 intake
|
φ8mm
|
CO2 filter
|
DUF imported
|
shelf material
|
SUS304 mirror stainless steel
|
rated power
|
0.18kw
|
Controller
|
Temperature control
|
PID
|
CO2 concentration control
|
PID
|
Temperature setting
|
press the 6 keys slightly
|
Temperature display
|
4 digital tube display
|
CO2 concentration display
|
3 digital tube display
|
timer
|
0~9999 minutes(with timed wait)
|
operation function
|
running with data set and time set, and automatic shut-down based on setting
|
temperature sensor
|
Pt100
|
CO2 concentration sensor
|
imported
|
water level sensor
|
imported
|
additional function
|
deviation adjustment, menu buttons lock, power outage compensation, power outage memory
|
Safety device
|
over-temperature alarm, menu lock, and CO2 concentration abnormity alarm, and warning water level alarm.
|
Specification
|
working size (W*D*Hmm)
|
350*380*380
|
exterior size (W*D*Hmm)
|
465*480*580
|
packing size (W*D*Hmm)
|
515*530*630
|
working capacity
|
50L
|
load bearing of shelf
|
15kg
|
shelf bracket groove
|
9
|
height between shelves
|
35mm
|
Power source( 50/60Hz)/Rated current
|
AC220V/0.8A
|
NW/GW
|
46/55kg
|
