Main Feartures:
1.Adopting the reasonable design of the front-roll and rear-drive. Once the rotary tillage roller is removed, plows, harrows and other farm tools can be installed.
2.It has the characteristics of simple structure, easy to turn, less fuel consumption, high efficiency, security and stability, convenience to transport and transfer in fields.
3.Wide range of applications, low technical requirements of tractor driver’s technology to drive the machine.
4.It can adjust the armreast by request and make the design more humanization.
Technical Parameters:
|
Name
|
Technical Specifications
|
Remarks
|
| Matched Power |
5.0kw
|
Optional For Power |
| Dimensions |
180x120x110cm
|
Length x Width x Height |
| Total Weight |
170kg
|
| Working Width |
110cm
|
| Diesel Engine Rated Speed |
2600 r/min
|
180 Diesel Engine |
|
Tillage Performance
|
Fuel Consumption (L/hm)
|
≤12(0.7L/h)
|
| Tilling width(mm) |
900
|
| Tilling depth(cm) |
≥10
|
| Broken rate of soil |
≥50.0
|
| Maximum Wheel Track |
94cm
|
| Minimum Turning Radius |
≤170cm
|
|
Drive Structure
|
Type |
Front-roll, rear-drive with double wheel drive step tilling type
|
| Power output shaft |
Speedofmainshaft 335r/min
|
| Working Efficiency (hm/h) |
≥0.075
|
Packaging & Delivery
| Packaging Details: |
Each one Packed into a Carton, carton size is 123*63.5*66cm |
| Delivery Detail: |
10-20 days after finished the payment |

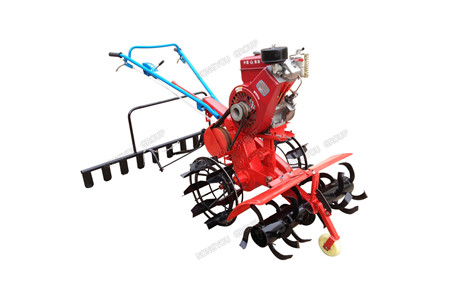

Best Price Mini Tiller Small Rotary Hoe China Factory Hand Power Tiller Light Weight 1WG-5
