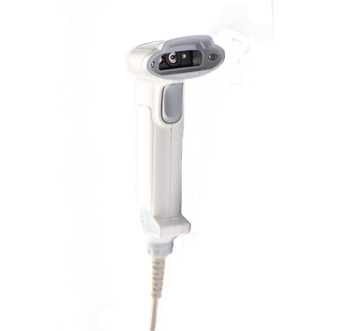

Operating indicators |
|
Visual |
1 LED (red/green/orange) |
Non-visual |
Buzzer |
Operating keys |
|
Entry options |
1 scan key |
Communication |
|
RS232 |
DB9 PTF connector with external power supply |
Keyboard Wedge |
MiniDIN6 F/M connector |
USB |
Ver. 1.1, HID/VCP, USB-A connector |
Power |
|
Voltage requirement |
6V ± 5% (Keyboard Wedge), 6V (min. 4.5, max. 6.5V) (RS232) |
Current consumption |
Max. 350mA (typical use), max 85 mA (standby) |
2D Imager Optics |
|
2D Light source |
Aiming laser diode, illumination LEDs |
2D Scan method |
CMOS area sensor, SXGA (1.3 million pixels), gray scale |
2D Scan rate |
Up to 80 fps (excl. focusing) |
2D Trigger mode |
Manual, multiple read, auto-trigger, stand detection |
2D Image format |
Windows Bitmap, JPEG, TIFF |
2D Gradulation |
256, 16, 2 |
2D Image output mode |
4 resolutions (full, 1/2, 1/3, 1/4), 2 ranges (horizontal, vertical) |
2D Reading pitch angle |
-40 to 0°, 0 to +40° |
2D Reading skew angle |
-50 to 0°, 0 to +50° |
2D Reading tilt angle |
360° |
2D Min. Resolution at PCS 0.9 |
0.127 mm / 5 mil, *0.169 mm / 7 mil*, at Code39 / QR Code and *Data Matrix* |
2D Min. PCS value |
0.45/0.3 |
2D Field of view |
Horizontal 40º, Vertical 23º |
2D Depth of field |
at Code 39: 15 - 55 mm / 0.59 - 2.17 in (0.127 mm
/ 5 mil), 15 - 200 mm / 0.59 - 7.87 in (0.254 mm / 10 mil), 90 - 870 mm
/ 3.54 - 34.25 in (1.0 mm / 39 mil), at QR Code: 15 - 170 mm / 0.59 -
6.69 in (0.339 mm / 13 mil) |
Supported Symbologies |
|
Barcode (1D) |
JAN/UPC/EAN incl. add on, Codabar/ NW-7, Code 11,
Code 39, Code 93, Code 128, GS1-128 (EAN-128), GS1 DataBar (RSS), IATA,
Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/
Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey |
Postal code |
Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, POSTNET |
2D code |
Aztec Code, Aztec Runes, Chinese Sensible code,
Codablock F, Composite codes, Data Matrix (ECC200/EC0-140), Maxi Code
(mode 2~5), MicroPDF417, Micro QR Code, PDF417, QR code |
Durability |
|
Temperature in operation |
-5 to 50 °C / -23 to 122 °F |
Temperature in storage |
-20 to 60 °C / -4 to 140 °F |
Humidity in operation |
5 - 85% (non-condensing) |
Humidity in storage |
5 - 80% (non-condensing) |
Ambient light immunity |
Fluorescent 10,000 lx max, Direct sun 100,000 lx max, Incandescent 10,000 lx max |
Drop test |
1.5 m / 5 ft drop onto concrete surface |
Vibration test |
10 - 100 Hz with 2G for 1 hour |
Protection rate |
IP 42 |
Physical |
|
Dimensions (w x h x d) |
56 x 137 x 112 mm / 2.20 x 5.39 x 4.41 in |
Weight body |
Ca. 80 g / 2.8 oz (excl. cable) |
Case |
ABS, Black or White |
Regulatory & Safety |
|
Product compliance |
CE, FCC, VCCI, RoHS, IEC 62471-1, IEC 60825-1 Class 1, IEC 60950-1 |
