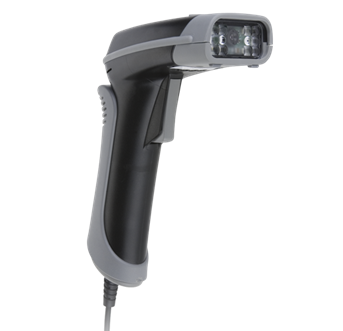

Operating indicators |
|
Visual |
1 LED (red/green/orange) |
Non-visual |
Buzzer |
Operating keys |
|
Entry options |
1 scan key |
Communication |
|
RS232 |
DB9 PTF connector with external power supply |
Keyboard Wedge |
DIN5 F/M connector, MiniDIN6 F/M connector with external power supply |
USB |
Ver. 1.1, HID/VCP, USB-A connector |
Power |
|
Voltage requirement |
6V ± 5% |
Current consumption |
340mA (typical use) |
2D Imager Optics |
|
2D Light source |
10 red LEDs 630 nm |
2D Scan method |
CMOS area sensor, SXGA (1.3 million pixels), gray scale |
2D Scan rate |
Up to 30 fps |
2D Trigger mode |
Manual, multiple read, auto-trigger, stand detection |
2D Image format |
Windows Bitmap, JPEG, TIFF |
2D Gradulation |
256, 16, 2 |
2D Image output mode |
4 resolutions (full, 1/2, 1/3, 1/4), 2 ranges (horizontal, vertical) |
2D Reading pitch angle |
-60 to 0°, 0 to +60° |
2D Reading skew angle |
-65 to 0°, 0 to +65° |
2D Reading tilt angle |
360° |
2D Focal plane |
110 mm / 4.33 in from window |
2D Curvature |
R>15 mm (EAN8), R>20 mm (EAN13) |
2D Min. Resolution at PCS 0.9 |
0.127 mm / 5 mil |
2D Min. PCS value |
0.45 |
2D Field of view |
Horizontal 47º, Vertical 37.5º |
2D Depth of field |
*40 - 195 mm / 1.57 - 7.68 in (0.339 mm / 13
mil)*, *85 - 125 mm / 3.35 - 4.92 in (0.127 mm / 5 mil)*, 35 - 230 mm /
1.38 - 9.06 in (0.5 mm / 20 mil), 55 - 160 mm / 2.17 - 6.30 in (0.25 mm /
10 mil), 85 - 125 mm / 3.35 - 4.92 in (0.127 mm / 5 mil), at *PDF417*
and Code 39 |
Supported Symbologies |
|
Barcode (1D) |
JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 39,
Code 93, Code 128, GS1-128 (EAN-128), GS1-128 (EAN-128), GS1 DataBar
(RSS), IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix
2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey |
Postal code |
Chinese Post, Korean Postal Authority code |
2D code |
Aztec Code, Aztec Runes, Composite codes, Data
Matrix (ECC200/EC0-140), Maxi Code (mode 2~5), MicroPDF417, Micro QR
Code, PDF417, QR code |
Durability |
|
Temperature in operation |
-20 to 50 °C / -4 to 122 °F |
Temperature in storage |
-25 to 70 °C / -13 to 158 °F |
Humidity in operation |
5 - 95% (non-condensing) |
Humidity in storage |
5 - 95% (non-condensing) |
Ambient light immunity |
Fluorescent 10,000 lx max, Direct sun 100,000 lx max, Incandescent 10,000 lx max |
Antistatic electricity |
15 kV (non-destructive) |
Drop test |
1.8 m / 6 ft drop onto concrete surface |
Vibration test |
10 - 100 Hz with 2G for 1 hour |
Protection rate |
IP 42 |
Physical |
|
Dimensions (w x h x d) |
55 x 149 x 129 mm / 2.17 x 5.87 x 5.04 in |
Weight body |
Ca. 135 g / 4.8 oz (excl. cable) |
Case |
ABS, Black |
Regulatory & Safety |
|
Product compliance |
CE, FCC, VCCI, RoHS |
