Thông tin sản phẩm
Purpose:

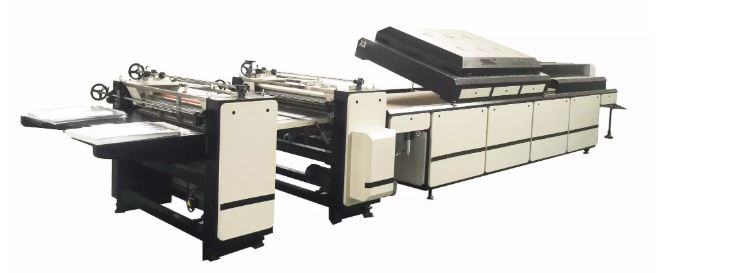

It is a paper surface varnishing (UV) and polishing machine which is suitable for the varnishing and polishing process of various paper (80-600g/m²); various paper prints after processing greatly improve surface gloss; the print surface has the damp-proof and water-proof effects. The machine adopts the reversing mechanism to make the oil layer thinner and more even.
The machine also adopts a computer air knife device, a strong absorption mechanism and a right-and-right scraper transmission mechanism. It has the characteristics of beautiful appearance, stable and reliable performance, simple and convenient operation and high automation degree.
Specifications:
|
Model
|
SE-1200S(manual feeding)
|
SE-1200A(auto feeding)
|
|
Length of Roller
|
1250mm
|
1250mm
|
|
Max. paper size
|
1150
|
1150*900mm
|
|
Min. paper size
|
*
|
390*320mm
|
|
Paper Thickness
|
80-600g/m²
|
80-600g/m²
|
|
Working speed
|
80m/min
|
80m/min
|
|
Voltage
|
380v 50Hz
|
380V 50Hz
|
|
Motor Power
|
2.5kw
|
3.5kw
|
|
Total power
|
65kw
|
70kw
|
|
Infrared Heating Power
|
21.6kw (18 pcs*1.2kw)
|
21.6kw (18 pcs*1.2kw)
|
|
Ultraviolet Heating Power
|
24kw (3 groups*8kw)
|
24kw (3 groups*8kw)
|
|
Machine Weight
|
3000kg
|
4500kg
|
|
Overall Dimension
|
9800*2000*1600mm
|
11800*2000*1800mm
|
|
Package
|
Seaworthy packing
|
Seaworthy packing
|
|
Loading
|
40” container
|
40” container
|
