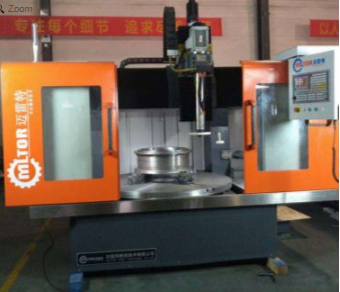

Máy mài khuôn ép viên |
Maximum ring die external diameter |
1500mm |
Minimum ring die inner diameter |
350mm |
Maximum ring die width |
550mm |
Maximum ring die weight |
1200kg |
Grinding supports as |
Inner and outer surface, end side and conical surface |
Grinding wheel repair |
Supports self-motion and manual-motion |
Grinding wheel choice |
Brown and plate-shaped grinding wheel |
Cooling system |
Circulating water-cooling |
Grinding head axis parameters |
Motor power |
4kW |
Grinding head rotating speed |
1000-4000 (frequency device for Mitsubishi) |
Work piece axis parameters |
Motor power |
5.5kW |
Rotating speed of workbench |
0-50rpm/min (frequency device for Mitsubishi) |
Max bearing weight of workbench |
1200kg |
Workbench surface size |
1500mm |
NC control and electric system |
NC control system |
MLT-208 |
Control axis |
X-axis + Z-axis |
Servo motor |
Alternative current servo motor drive |
Electric cabinet air-condition |
DLW5, compressor refrigeration |
Voltage |
220V AC, 3P |
Frequency |
60Hz (adjustable) |
Rated power |
12kW |
Machine size |
2940x2460x2920mm |
Machine weight |
8500kg |
