MODEL |

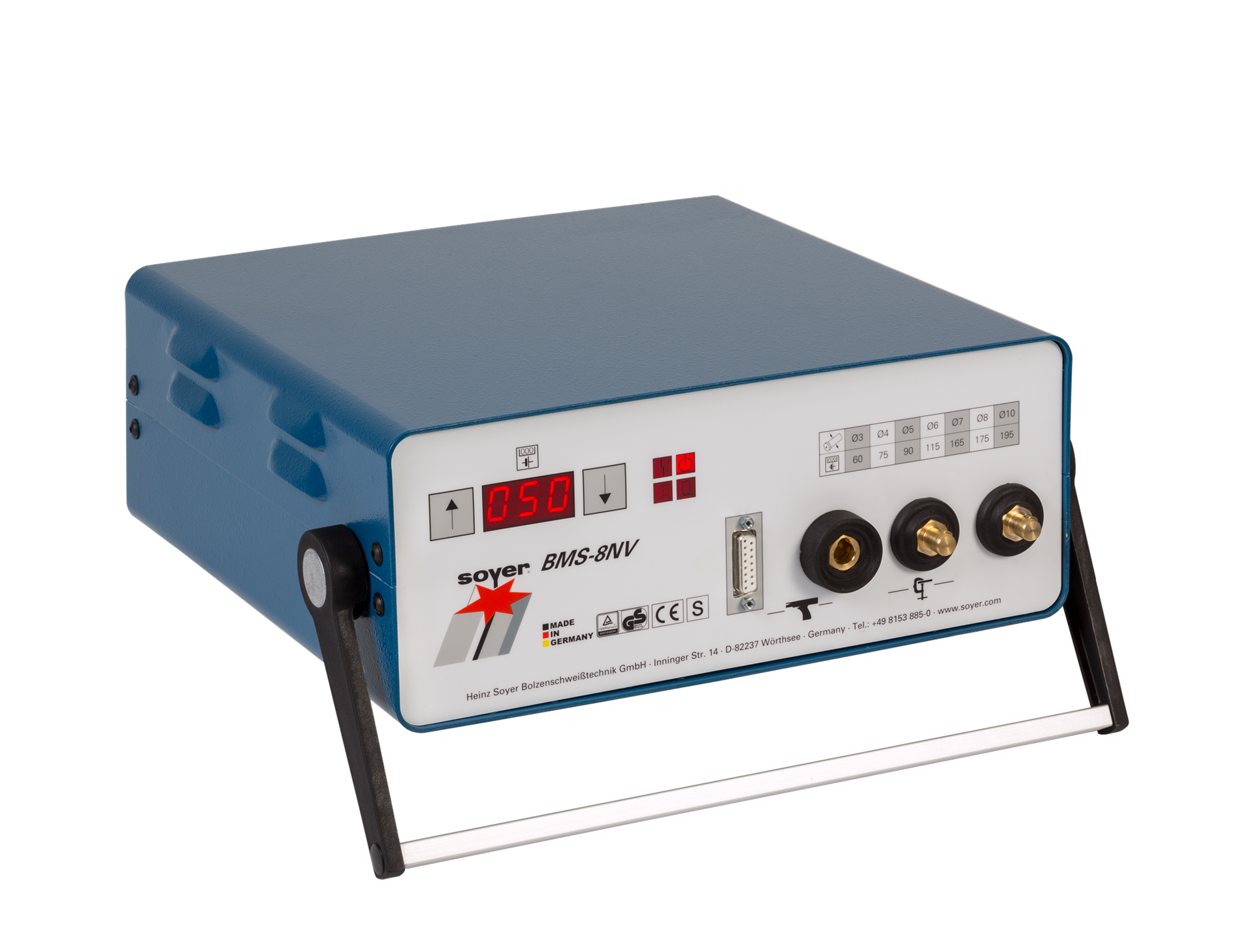

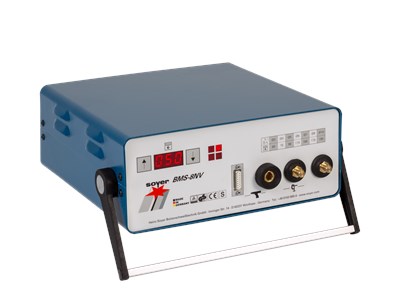

BMS-8N / NV |
Welding range |
M3 – M8 or Ø 2 – 8 mm with BMS-8N,
M3 – M10 or Ø 2 – 9 mm with BMS-8NV |
Material |
Steel, stainless steel, aluminium and brass
(M8 or Ø 8 in aluminium and brass conditionally,
depending on the respective requirements) |
Standard gun |
PS-1K positioning welding gun |
Power source |
Capacitor battery |
Charging capacity |
66 000 μF (option 99 000 μF with BMS-8NV) |
Charging voltage |
50 – 200 V, infinitely variable up/down |
Welding time |
0.001 – 0.003 seconds |
Welding sequence
BMS-8N
(BMS-8NV) |
BMS-8N: Ø 3 mm up to 20 studs/min |
Ø 6 mm up to 10 studs/min
(BMS-8NV: Ø 3 mm up to 20 studs/min |
Ø 8 mm up to 7 studs/min) |
Mains supply |
115/230 V, 50/60 Hz, 16/10 AT |
Welding cable |
3 m highly flexible |
Earth cable |
2 x 3 m highly flexible |
Dimensions |
300 x 120 x 320 mm (w x h x d) |
Weight |
10 kg |
Colour |
RAL 5009 azure-blue |
