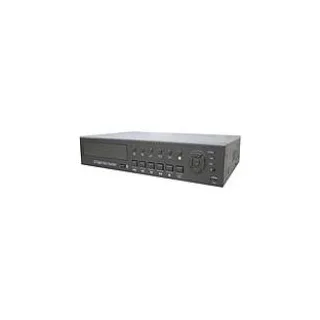

Đầu ghi METSUKI DVR-MS 8016AV

Model

DVR-MS8016AV-D

System

Format

H.264 main profile Hi3520 chipset

Master processor

Technical grade embedded micro controller

O.S.

Embedded Linux operation

System resources

Multichannel real-time recording, playback, multi users
network ops, simultaneously. USB backup output

Interface

Operation interface

16bit true color graphical operation interface, support mouse operation

Picture display

1/4/8/9/16frame

  Video

Video standard

PAL（625TVLine, 50fps）; NTSC（525TVLine, 60fps）

Monitoring quality

PAL, D1 (702×576）; NTSC, D1（702×488）（real-time）

Playback quality

D1/HD1/CIF/QCIF

Code capacity

4xD1 real time + 12 CIF (25fps/channel) or 16 x D1 (10 fps/channel)

Motion detection

64（8x8）surveyed area can be set in everyone frame;

Audio

Audio compression

G711A

VoIP

Yes

Recording
and
playback

Recording mode

Manual/alarm/motion detection/timing

Local playback

Any channel and multi channel playback simultaneously (max 16channel)

Recording search

Time point, calendar, event, channel

Storage and

back up

Occupation/ch

Audio: 28.8Mbyte/ hour + video: 25～450Mbyte/hour

Record storage

Local HDD, DVD-R/RW and network

Backup mode

Network, USB HDD, USB DVD-R/RW,SATA DVD R/RW

Interface

Video input

16 channel BNC

Video output

1channel BNC,1.0Vp-p,75Ω，1channel VGA output

SD card

NO（some model only）

Audio input

4channel RCA, 200-2800mV,30KΩ

Audio output

1channel RCA, 200-3000mV,5KΩ

Alarm input

8channel

Alarm output

1channel

Network

RJ45 10M/100M self-adapting Ethernet port, I.E. viewing,
and supports Windowsmobile, Symbian, iPhone and
Black Berry and Android cell phone viewing; also Central
Management System (CMS)

PTZ

1 x RS485

USB

2 x USB interface

HDD

2xSATA, supports 2TB

Others

Power

12V/4.15A external adaptor

Dissipation

<10W（w/o HDD）

Working temperature

0℃-＋55℃

Working humidity

10%－90%

Dimension

Color box: 410*415*135mm,
DVR: 350*332*70 mm
Carton: 555*425*430, 4pcs/carton

Weight

4.5kg

Support language

  English, French, Portuguese, Russian, Chinese, Italian, Spanish,Thai,Greek, Japanese, German, Turkish, Polski,Finnish,Farsi,Vietnamese, Romanian, Korean, Brazil, Indonesian and Hungarian.
