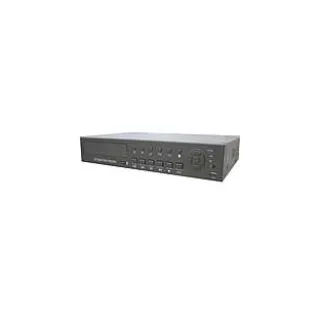

Đầu ghi METSUKI DVR-MS9004AV Full-D1 4Ch standalon

Model

DVR-PD9004AV  Full-D1 4Ch standalone

System

Format

H.264 main profile

Master processor

Technical grade embedded micro controller

O.S.

Embedded Linux operation

System resources

Multichannel real-time recording, playback, multi users network ops, simultaneously.
USB backup output

Interface

Operation interface

16bit true color graphical operation interface, support mouse operation

Picture display

1/4 frame

Video

Video standard

PAL（625TVLine, 50fps）; NTSC（525TVLine, 60fps）

Monitoring quality

PAL, Full-D1（704×576）100FPS; NTSC, Full-D1（704×480）120FPS

Playback quality

PAL, Full-D1（704×576）100FPS; NTSC, Full-D1（704×480）120FPS

Code capacity

100fps (PAL) （Full-D1）100FPS; 120fps (NTSC) （Full-D1）

Motion detection

396（22x18）surveyed area can be set in everyone frame; Multi level sensitivity can be set

Audio

Audio compression

G711A

VoIP

Yes

Recording
and
playback

Recording mode

Manual/alarm/motion detection/timing

Local playback

Single channel, multi channel (max 4channel simultaneously)

Recording search

Time point, calendar, event, channel

Storage
and
back up

Occupation HDD
space in
everyone channel

Audio: 28.8Mbyte/ hour + video: 25～450Mbyte/hour

Record storage

Local HDD, SD card, DVD-R/RW and network

Backup mode

Network, USB HDD, USB DVD-R/RW

 Interface

Video input

4channel BNC, 1.0Vp-p,75Ω

Video output

1channel BNC,1.0Vp-p,75Ω，1channel VGA output

SD card

yes（some model only）

Audio input

4channel RCA, 200-2800mV,30KΩ

Audio output

1channel RCA, 200-3000mV,5KΩ

Alarm input

4channel

Alarm output

1channel

Network

RJ45,I.E. viewing,supports Windows mobile, Symbian, iPhone and black berry, Android
cell phone viewing; Central Management System (CMS);

PTZ

1 x RS485

USB

2 x USB interface

HDD

2 x SATA interface (total 4TB) , DVD-R/RW

Others

Power

12V/4.15A external adaptor

Dissipation

<10W（w/o HDD）

Working temperature

0℃-＋55℃

Working humidity

10%－90%

Dimension

Color box: 410*415*135mm,  DVR: 350*332*70 mm,  Carton: 555*425*430, 4pcs/carton

Weight/pc

5.2kg
