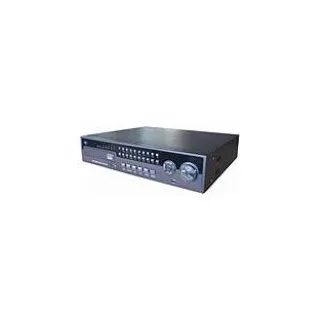

Đầu ghi METSUKI DVR-MS 9016AV Full-D1 16ch

Model

DVR-MS9016AV DVR-MS9016AV Full-D116ch standalone DVR DVR

 System

Format

H.264 main profile

Master processor

Technical grade embedded micro controller

O.S.

Embedded Linux operation

System resources

Multichannel real-time recording, playback, multi users network ops, simultaneously.
USB backup output

Interface

Operation interface

16bit true color graphical operation interface, support mouse operation

Picture display

1/4/8/9/16 frame

Video

Video standard

PAL（625TVLine, 50fps）; NTSC（525TVLine, 60fps）

Monitoring quality

PAL, Full-D1（704×576）400FPS; NTSC, Full-D1（704×480）480FPS

Playback quality

PAL, Full-D1（704×576）400FPS; NTSC, Full-D1（704×480）480FPS

Code capacity

400fps (PAL) （Full-D1）; 480fps (NTSC) （Full-D1）

Motion detection

396（22x18）surveyed area can be set in everyone frame; Multilevel sensitivity can be set

Audio

Audiocompression

G711A

VoIP

Yes

Recording
and
playback

Recording mode

Manual/alarm/motion detection/timing

Local playback

Single channel, multi channel (max 16channel simultaneously)

Recording search

Time point, calendar, event, channel

Storage and

back up

Occupation HDD
space in everyone channel

Audio: 28.8Mbyte/ hour + video: 25～450Mbyte/hour

Record storage

Local HDD, SD card, SATA DVD-R/RW, DVD-R/RW (some model only) and network

Backup mode

Network, USB HDD, USB DVD-R/RW

Interface

Video input

16channel BNC, 1.0Vp-p,75Ω

Video output

1 channel BNC,1.0Vp-p,75Ω，1channel VGA output

16 channel loop out

SD card

Yes

Audio input

8 channel RCA, 200-2800mV,30KΩ

Audio output

1channel RCA, 200-3000mV,5KΩ

Alarm input

16channel

Alarm output

4channel

Network

RJ45,I.E. viewing,supports Windows mobile, Symbian, iPhone and black berry, Google Android
cell phone viewing; Central Management System (CMS);

PTZ

1 x RS485, 1 x RS232

USB

2 x USB interface

HDD

4 x SATA interface (total 8TB, max 8 x SATA for option) , DVD-R/RW

Others

Power

12V/6.15A external adaptor

Dissipation

<15W（w/o HDD）

Working  temperature

0℃-＋55℃

Working humidity

10%－90%

 Dimension

Color box: 545*480*210mm,   DVR: 440*435*102 mm,  Carton: 580*515*670 mm, 2pcs/carton

Weight/pc

kg

Support language

 Chinese, English, VietNam, French, Portugal, Russia, Italian, Spanish, Thai,
Greek, Japanese, German, Turkish, Polski and Finnish.
