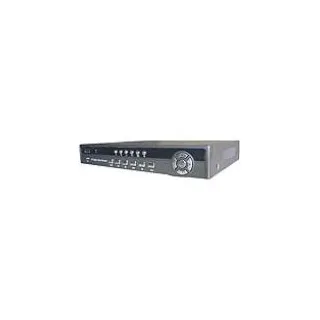

Đầu ghi METSUKI DVR MS-8004AV

 System

Format

H.264 main profile

Master processor

Technical grade embedded micro controller

O.S.

Embedded Linux operation

System resources

Multichannel real-time recording, playback, multi users network ops, simultaneously. USB backup output

Interface

Operation interface

16bit true color graphical operation interface, support mouse operation

Picture display

1/4 frame

Video

Video standard

PAL（625TVLine, 50fps）; NTSC（525TVLine, 60fps）

Monitoring quality

PAL, D1（704×576）; NTSC, D1（704×480）

Playback quality

PAL, CIF（352×288）; NTSC, CIF（352×240）（real-time）
CIF: 100FPS PAL, 120fps NTSC;  D1: 50fps PAL, 60 fps NTSC;
3ch x25fps CIF, 1ch x 25FPS D1

Code capacity

CIF: 100FPS PAL, 120fps NTSC;  D1: 50fps PAL, 60 fps NTSC;
3ch x25fps CIF, 1ch x 25FPS D1

Motion detection

396（22x18）surveyed area can be set in everyone frame; Multilevel sensitivity can be set

Audio

Audio compression

G711A

VoIP

Yes

Recording and playback

Recording mode

Manual/alarm/motion detection/timing

Local playback

Single channel, multi channel (max 4 channel simultaneously)

Recording search

Time point, calendar, event, channel

 Storage and back up

Occupation HDD space in everyone channel

Audio: 28.8Mbyte/ hour + video: 25～450Mbyte/hour

Record storage

Local HDD and network

Backup mode

Network, USB HDD and USB DVD-R/RW

Interface

Video input

4 channel BNC

Video output

1channel BNC,1.0Vp-p,75Ω，1channel  VGA output

SD card

No

Audio input

1channel RCA, 200-2800mV,30KΩ

Audio output

1channel RCA, 200-3000mV,5KΩ

Network

RJ45 10M/100M self-adapting Ethernet port, I.E. viewing, and supports Windows
mobile, Symbian, iPhone and Black Berry and Google cell phone viewing; also Central Management System (CMS)

USB

1 x USB interface

HDD

1 x SATA supports 2TB

Alarm

No

PTZ

RS485

Others

Power

DC 12V/3A external adaptor

Dissipation

<10W（w/o HDD

Working temperature

0℃-＋55℃

Working humidity

10%－90%

Dimension

Color box: 365*325*110mm,  DVR: 310*225*50 mm
Carton: 580*380*340mm, 5pcs/carton

Weight

2.0kg/carton

Support language

VietNam,   English, French, Portugal, Russia, Italian, Spanish, Thai, Greek, Japanese, German, Turkish, Chinese, Polski and Finnish.
