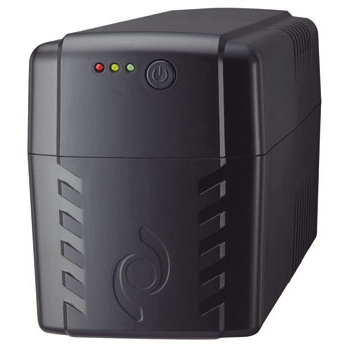

Model
|
UN650
|
Input
|
Voltage Window
|
100/110/120/220/230/240VAC
Nominal -25%+25%(build-in A.V.R.)
|
Frequency
|
50Hz or 60Hz
|
Inv. O/P
|
Waveform
|
PWM Simulated Sine wave
|
Frequency
|
50Hz or 60Hz +/-1Hz
|
Capacity
|
650VA
|
Regulation
|
+/-3%
|
Transfer Time
|
2ms typical; 5ms maximum
|
Battery
|
Types
|
Lead-Acid maintenance-free
|
DC Bus
|
12V/7AH
|
Number
|
1 PCE
|
Recharge Time
|
Typically 8 hours to 90% charged
|
Run Time
|
10-30 minutes depending on load connected
|
Protection
|
Over/Under Volt.
|
Switch to Bat. O/P when Mains over regulation range
|
Overload/Short
|
Fuse & current limited for both mains and Battery modes
|
Low Battery
|
Two stages; no battery drain after cut off
|
Noise Filtering
|
EMI/RFI full time suppression
|
Mechanical
|
Socket Type
|
Universal Ouput Socket
|
Socket No. (pcs)
|
Universal * 2pcs
|
Dim (L*W*H)mm
|
311×96×14.5
|
Weight (kgs)
|
7
|
Shipping Wt.
|
7
|
Environment
|
Ambient
|
0-40 degree C, 0-90% non-condensing
|
Audible
|
Less than 35 dBA (1M distance)
|
Warning
|
LED on Front
|
AC Normal: Green LED Steadily; Backup: Yellow LED intermittently
|
Signals
|
Beeping Alarm
|
On Battery, Battery Low and Overload
|
CommunicationPort
|
DB9 or USB
|
Tel/Fax/Modem Protection
|
RJ11 or RJ45
|
Cold Start
|
It enables to activate UPS without Utility Power
|
