Standard Features |

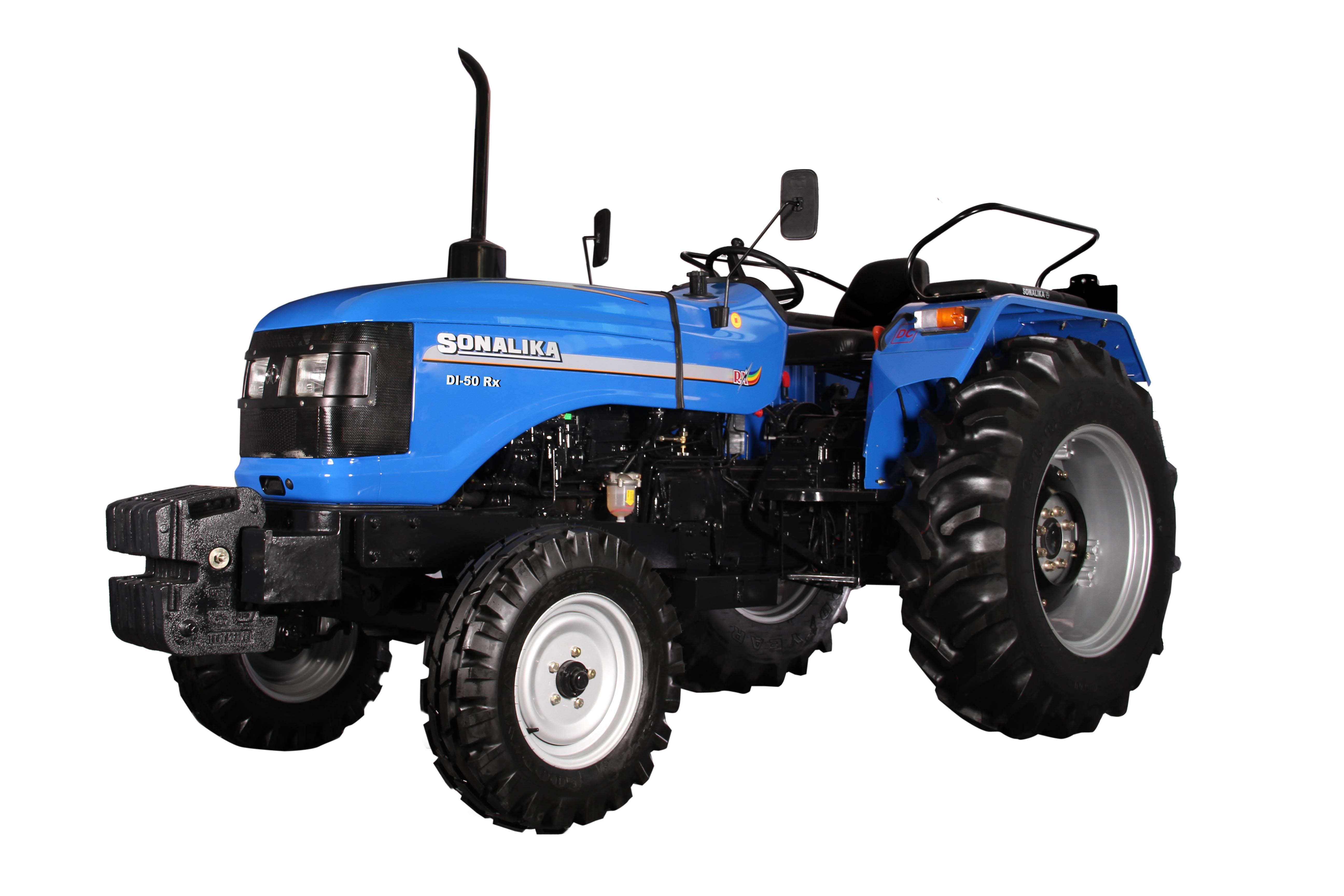

DI-50 RX 2WD/4WD
|
Engine |
Engine Type |
3102 IL without coldstart |
HP Category |
50 |
No. of Cylinders |
3 |
Aspiration |
Natural Aspiration |
Bore/Stroke(mm) |
102/118 |
Cubic Capacity (cc) |
2893 |
Rated RPM (+/-25mm) |
2100 |
Air cleaner |
Dry air cleaner with clogging sensor |
Max Torque (Nm) @ RPM |
190(+/-5%)@1200 RPM(+/-100) |
Transmission |
Drive |
2wd/4wd |
Clutch |
Dual Clutch |
Gearbox |
8F+2R |
Transmission |
Constant mesh |
PTO |
PTO (rpm) |
540 rpm |
PTO (actuation) |
Mechanical,Hand operated |
Diff Lock |
Diff. Lock(mechanical) |
Yes foot operated |
Electrical |
Battery |
12V,88 AH |
Alternator |
12V,36Amp/12V |
Seven pin trailer socket |
Yes |
DCV |
Auxiliary hydraulic circuit |
1SA+1DA |
No.of Spool valves |
3 |
Steering |
Steering |
Power Steering |
Tyre |
Front |
6×16/9.50×20 |
Rear |
13.6×28 |
Speed(Forward) |
Max Speed(Km/Hr) |
29.95@2100 |
Min Speed(Km/Hr) |
2.62@2100 |
Hydraulics |
3 point linkage |
CAT2 |
Stay Bars |
Yes adjustable stay bar |
Hydraulic lifting capacity |
1600 kg |
Brakes |
Brakes |
Oil immersed brakes |
Type of actuation |
Mechanical |
Hand brake |
Yes independent type |
Others |
Canopy |
No |
Fuel Indicator gauge |
Yes |
Driver Seat |
Yes,Adjustable with safety Emblem. |
Trailer hitch |
Rear rotating toe hook |
Registration Plate with light |
Yes with E-marked light |
Front Toe Hook |
Yes |
Front & rear weights |
Base Weight 72 Kg |
Drawbar |
Swinging Draw Bar with Linkage crossbar. |
ROPS |
No |
Safety Switch |
Neutral safety switch |
Yes |
P.T.O Safety switch |
No |
Clutch Safety Switch |
No |
Capacity (ltrs)(+/-5%) approx |
Fuel tank |
55 |
Eng Oil |
8.2 |
Hyd+Tran |
55 |
Dimension & Weight(+/-5%) |
Gross Weight(kg) |
2213/2841 (unballasted) |
Wheel Base (mm) |
1970/2220 |
Total Length (mm) |
3630/3730 |
Total Width (mm) |
1710/1770 |
Height (mm) |
2200/2320 (upto exhaust pipe) |
Ground Clearance (mm) min |
397/310 |
Front Track, (mm), min.-max. |
1290 (min) -1505 (max)/1570 |
Rear Track, (mm), min.-max. |
1350 ( std), 1430 (min) – 1880 (max)/1420 |
Turning Diameter |
With Brakes (m) |
6.5 m ( R ) – 6.4 m ( L )/7.84 m (R) – 7.87 m (L) |
Without Brakes (m) |
7.53 m ( R ) – 7.55m ( L )/9.78 m (R) – 9.79 m (L) |
Features |
Air Trailer Brakes |
