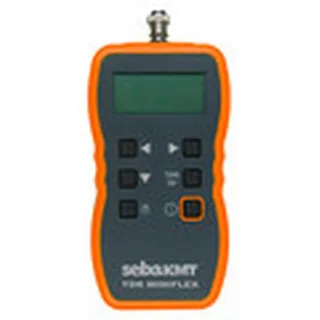

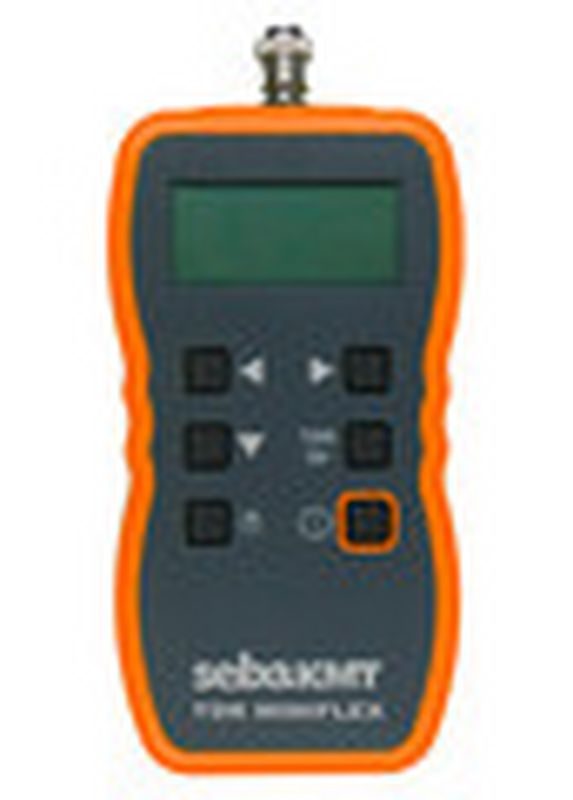

Máy kiểm tra lỗi cáp SebaKMT TDR MiniflexPlus

Ranges: 7, 15, 30, 60, 120, 250, 500 m,1, 2, 3, 6 km

           (23, 49, 98, 197, 394, 820, 1640, 3280, 6560, 9850,19000 ft)

Resolution: approx. 1 % of range

Accuracy: 1 % of range

Propagation Velocity: V/2 2.5 … 148.5 m/μs,ft/μs or NVP

Output: pulse 5 Vp-p (open circuit)

Output impedance: adjustable 25, 50, 75 and100 Ω

Output pulse width: 3 ns … 3 ms

Scan rate Single or continuous

Measurement: (max. 2 measurements persecond)

Tone generator: 810 … 1110 Hz

Auto power off adjustable

Power supply: 4 x AA batteries

Display: 64 x 128 Pixel LCD, backlit

Voltage withstand: 250 V AC

Operating temperature: -10 °C … +50 °C

Storage temperature: -20 °C … +70 °C

Water / dust protection: IP 54

Dimensions: 165 x 90 x 37 mm

Weight: 350 g (12 oz)

Option: Fault Converter

Manufacturer: SebaKTM – Germany
