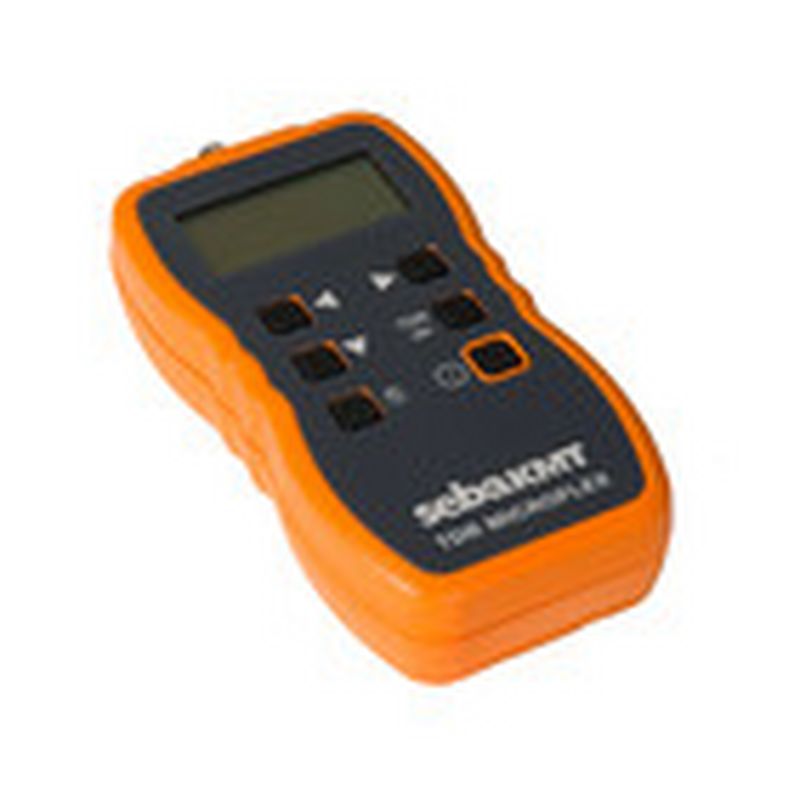

Máy kiểm tra lỗi cáp SebaKMT TDR Microflex

Ranges: 220, 440, 870, 1750 and 3500 m

              720, 1440, 2850, 5740 and 11500 ft

Range Selection: Automatic range control

Resolution: Approximately 1% of range

Accuracy :1% of measurement range *

Velocity: Factor Adjustable from 1% to 99%

Adjustable: from 2,5 to148,5 m/μs

Output Pulse: 5 Vp-p into open circuit

Output Impedance Selectable 50, 75 and 100 Ω

Output Pulse Width 25 ns min. 1.6 μs max.

Scan Rate: 6.7 scans per second

Tone Generator Oscillating: 810 - 1110 Hz

Auto Power Down 3 minutes

Power Supply: 4 x AA cells

Backlit Display: 64 x 128 pixel

Voltage Withstand Protection 250 V AC

Sensitivity: min. 3 pixel return at 2 km(6 kft)

Operating Temperature: 0 °C … +40 °C

Storage Temperature: -20 °C … +70 °C

Safety: IEC61010-1; EN 60950

EMC BS/EN 61326-1

Water: / Dust Proof IP54

Dimensions: 165 x 90 x 37 mm

Weight: 350 g (12 oz)

Option: Fault Converter

Manufacturer: SebaKTM – Germany
