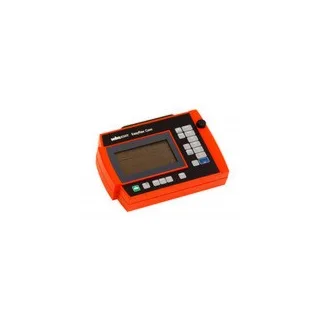

Máy kiểm tra lỗi cáp SebaKMT Easyflex Com

Test range: 50 m ... 15000 m

Test methods:

    Direct measurement with phantom

    Comparitive measurem. of 2 pairs

    Differential measurem. of 2 pairs coupling, cross measurement

Pulse width: 5; 10; 20; 50; 200; 750 ns

Distance display: μs; m; ft

Max. resolution: 5 cm

Accuracy: +/- 0.1 % of the test range, +/- actual resolution

v/2 adjustment 30 …149.9 m/μs

98.4 …491.8 f/μs

NVP-Factor: 0.200 … 0.9999

Dynamic Range 90 dB

Display 256 x 128 Pixel

Pulse amplitude 10 V to 120 Ohm

Internal phantom 40 ... 200 Ohm

Power supply NiMH - changeable battery

external: 230 VAC/11 - 15 VDC

Operation temp:. -10 °C to +50 °C

Storage temp:. -20 °C to +60 °C

Housing plastic, IP55 according to DIN 40 50

Dimensions: (W x H x D) 260 x 176 x 70 mm

Weight: 1.5 kg

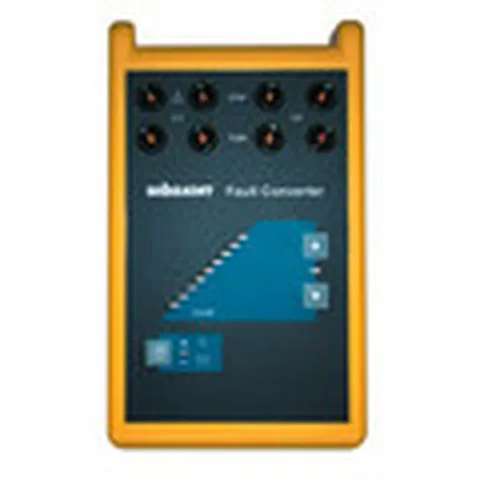

Option: Fault Converter

Manufacturer: SebaKTM – Germany
